Planetary Gear Components

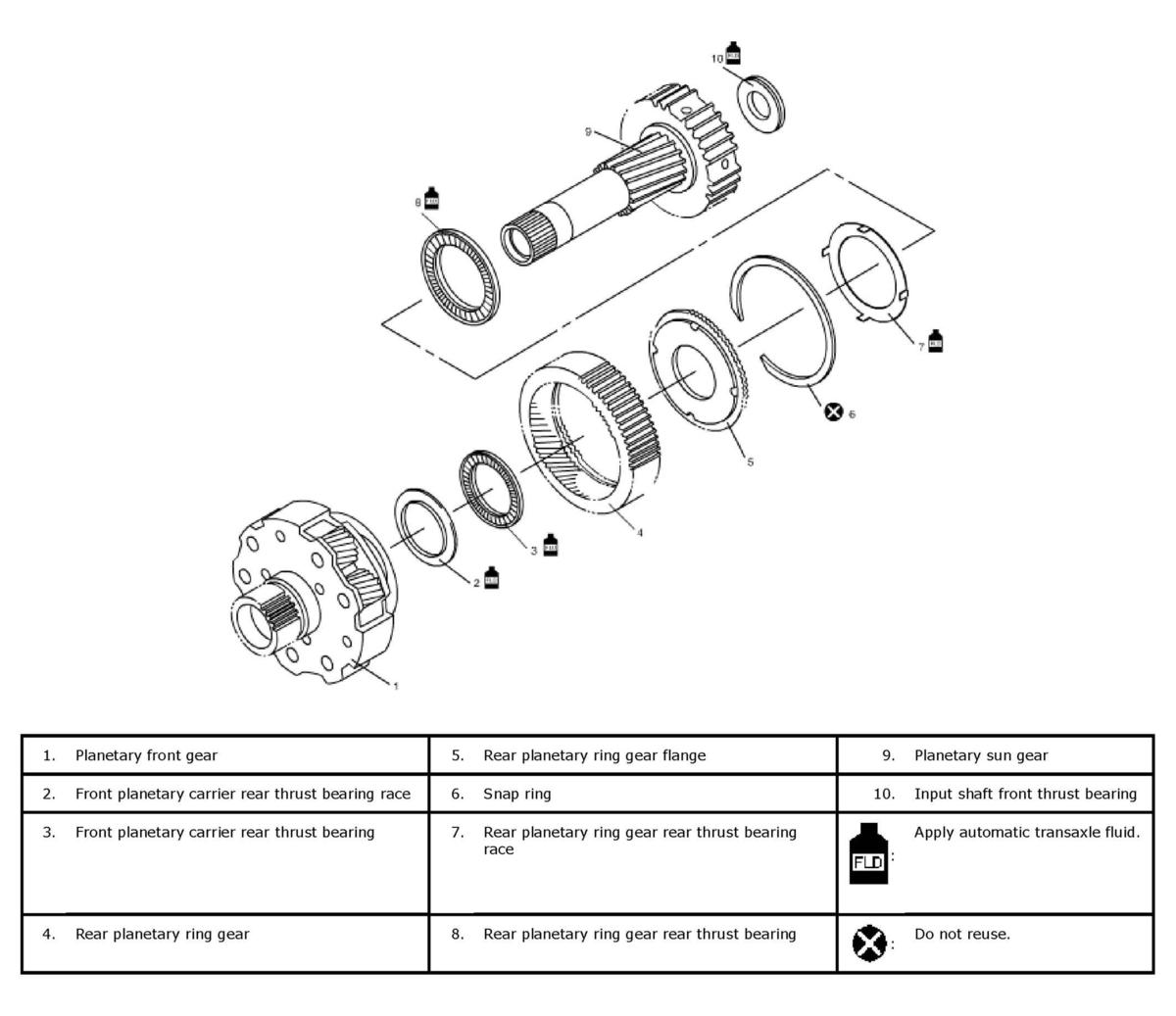

Fig 1: Identifying Planetary Gear Components
G04592039Courtesy of SUZUKI OF AMERICA CORP.
