Select Cable Adjustment

Reference: SELECT CABLE REMOVAL AND INSTALLATION

1. Remove adjuster (cable end) from select lever pin of select lever assembly.

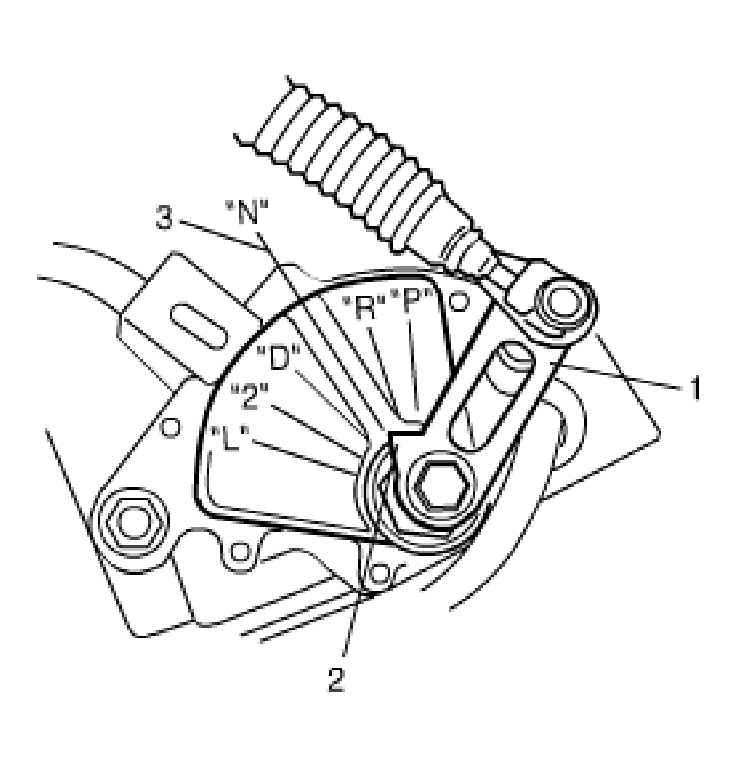

2. Shift manual shift lever (1) to "N" range (transmission range sensor "N" range) aligning arrow (2) of lever (1) with "N" reference line (3).
   Fig 1: Removing Adjuster From Select Lever Pin Of Select Lever Assembly

   Courtesy of SUZUKI OF AMERICA CORP.

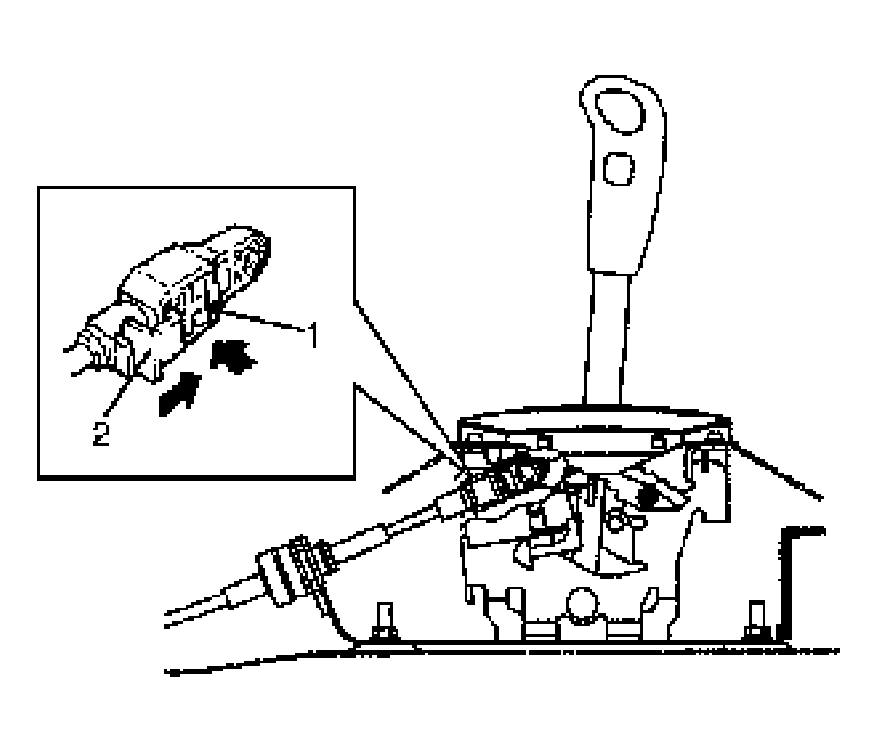

3. Release lock plate (1) which restricts moving of cable end holder (2).
   Fig 2: Releasing Lock Plate

   Courtesy of SUZUKI OF AMERICA CORP.
4. Push cable end holder (1) out from eye-end (2) using an appropriate tool (3) to disengage cable.
   Fig 3: Disengaging Cable From Eye-End

   Courtesy of SUZUKI OF AMERICA CORP.
5. Shift select lever to "N" position.
6. Apply grease to selector lever pin and install adjuster (cable end) to it.

   : Grease 99000-25010

7. With both select lever and transmission range sensor kept each "N" position, drive cable end holder (1) in until it locks cable.
8. Slide lock plate (2) to secure cable end holder in position.
   Fig 4: Driving Cable End Holder In Locks Cable

   Courtesy of SUZUKI OF AMERICA CORP.
9. After select cable was installed, check for the following.
   • Push vehicle with selector lever shifted to "P" range. Vehicle should not move.
   • Vehicle can not be driven in "N" range.
   • Vehicle can be driven in "D", "2" and "L" ranges.
   • Vehicle can be backed in "R" range.
