Transmission Control Module (TCM) Wiring Diagram: Notes

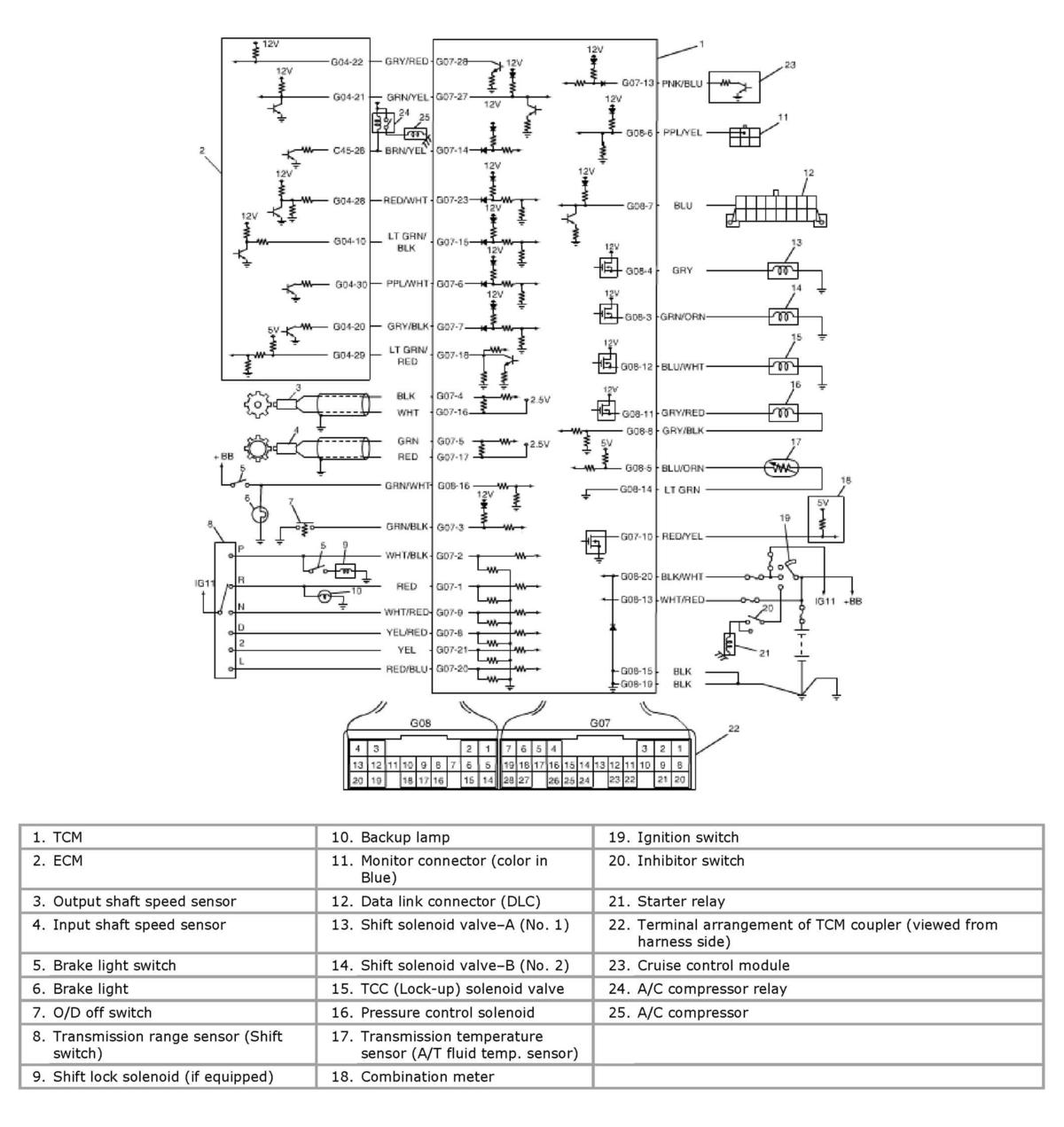

Fig 1: Wiring Diagram - Transmission Control Module (TCM)
G04591805Courtesy of SUZUKI OF AMERICA CORP.
