Cruise Control Switch: Service and Repair

Cruise Control Switch

Removal
1. Disconnect the negative battery cable.

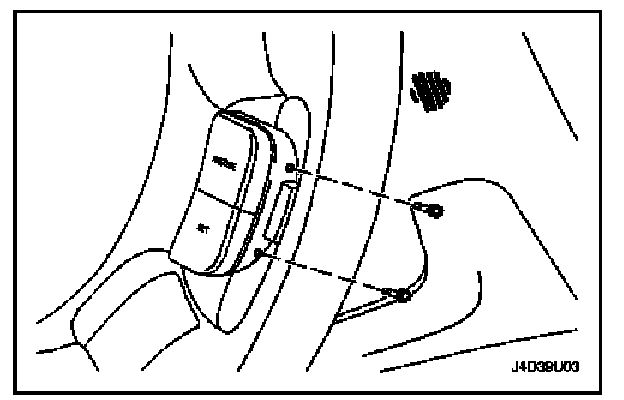

2. Remove the screws and cruise control switch.




3. Disconnect the cruise control switch connector.

Installation
1. Connect the cruise control switch connector.
2. Install the cruise control switch with screws.




3. Connect the negative battery cable.
