Body Control Systems: Locations

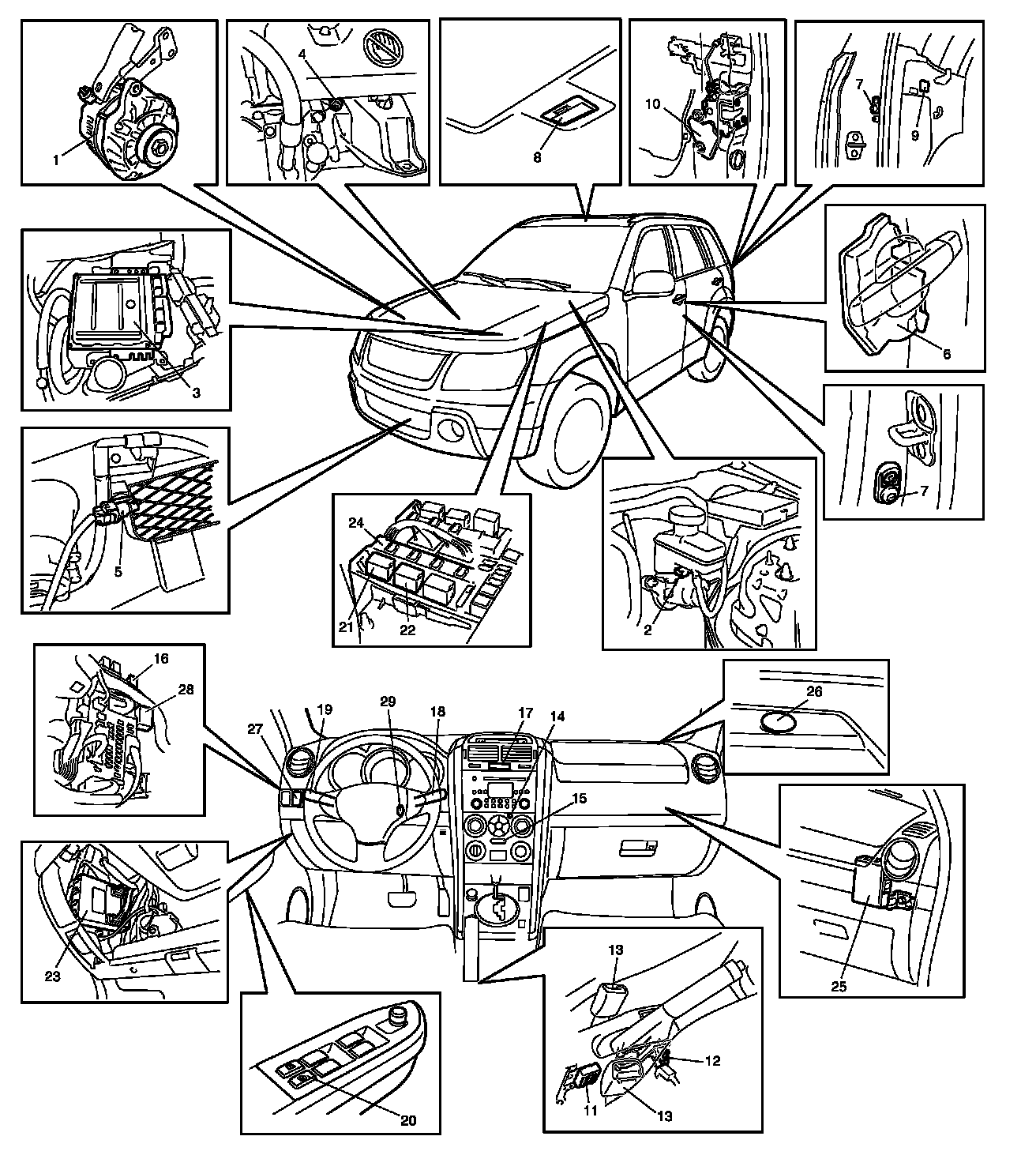

BCM And Related System Component Location (Part 1):



BCM And Related System Component Location (Part 2):
