DTC P0568: Cruise Control Set Switch Circuit: Notes

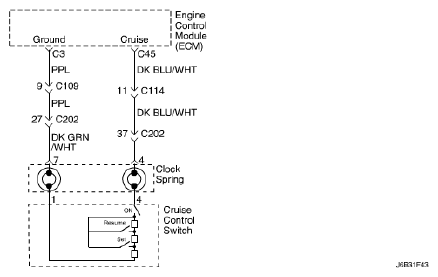

Fig 1: Cruise Control Multi-Function Switch - Circuit Diagram
G04817338Courtesy of SUZUKI OF AMERICA CORP.
