DTC P0134: HO2S Circuit Insufficient Activity Sensor 1: Notes

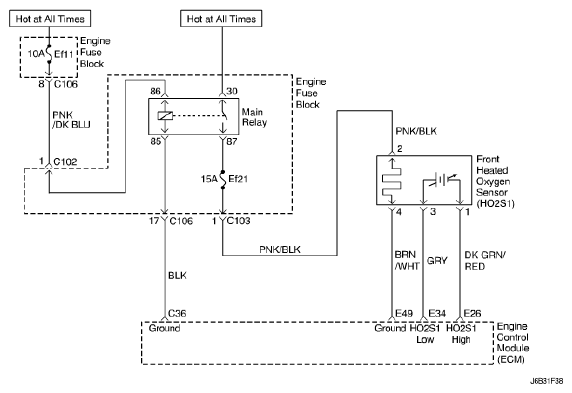

Fig 1: Front Heated Oxygen Sensor (HO2S1) - Circuit Diagram (High Voltage)
G04817267Courtesy of SUZUKI OF AMERICA CORP.
