DTC P0601: Internal Control Module Memory Checksum Error: Notes

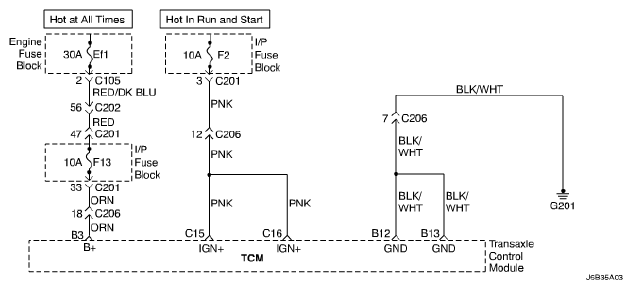

Fig 1: Internal Control Module Memory Checksum Error - Circuit Diagram
G04717178Courtesy of SUZUKI OF AMERICA CORP.
