Gear Shift Control Components

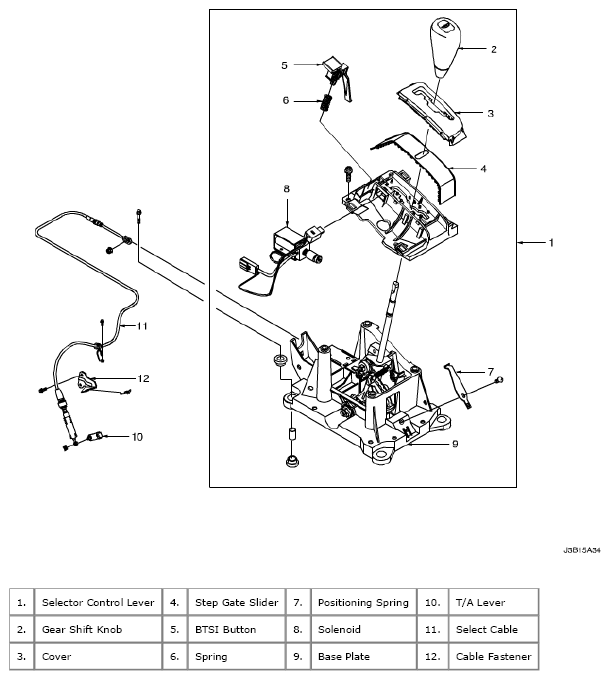

Fig 1: Exploded View Of Gear Shift Control Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
