Transaxle Control Module Circuit Wiring Diagram

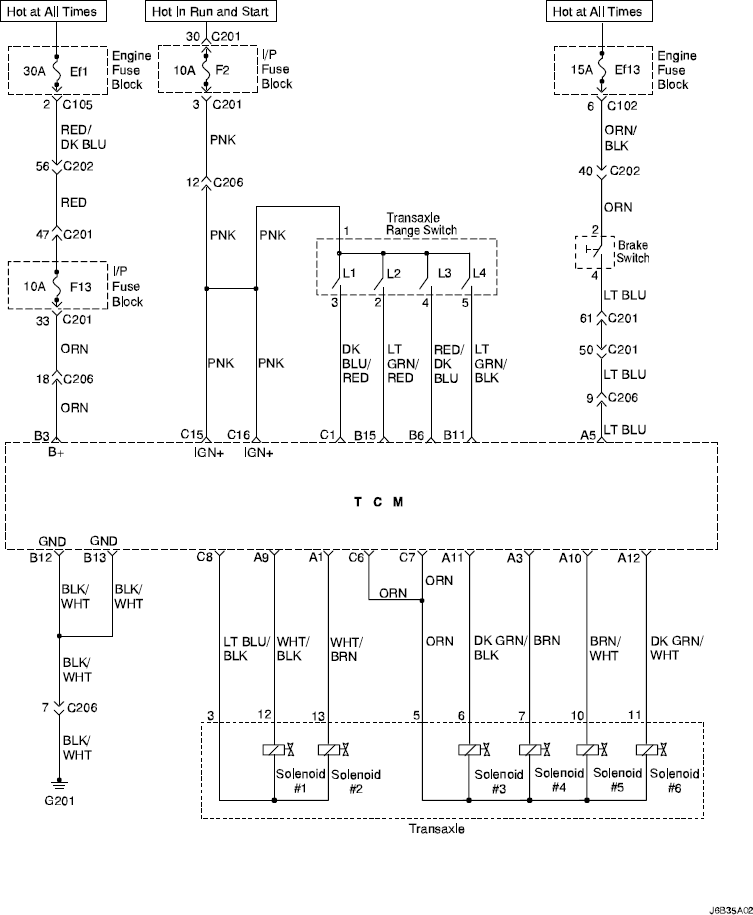

Fig 1: Transaxle Control Module Circuit Wiring Diagram (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

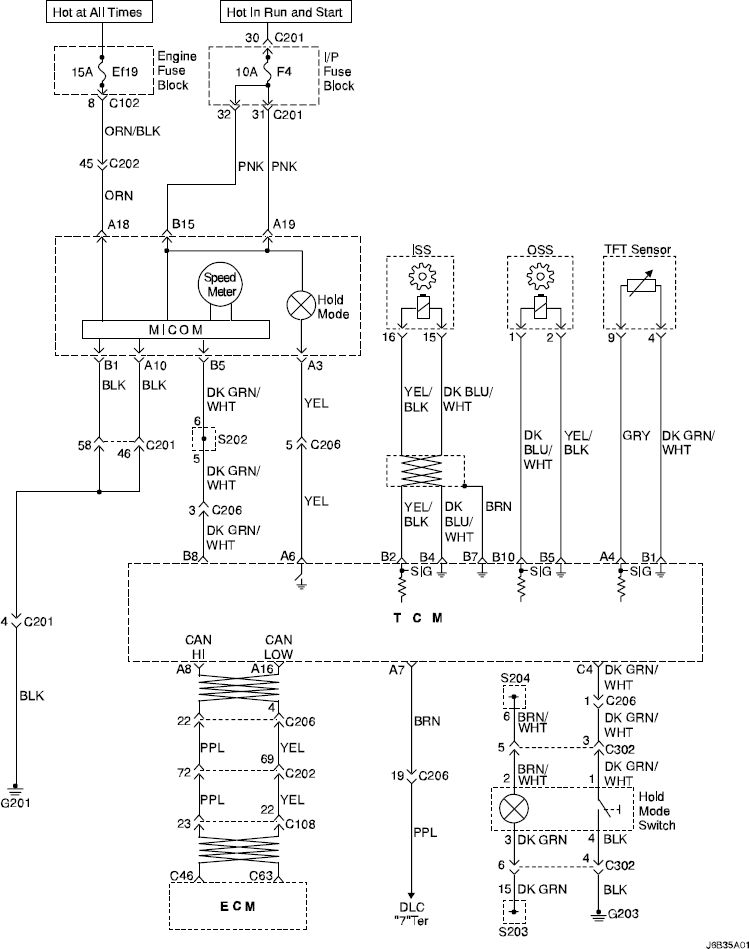

Fig 2: Transaxle Control Module Circuit Wiring Diagram (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
