Speed Sensitive Power Steering Control Module Removal and Installation: Removal

  1. Disconnect negative battery cable.
  2. Remove the glove box. Refer to GLOVE BOX REMOVAL AND INSTALLATION .
  3. Slide the Speed Sensitive Power Steering (SSPS) control module off from the control module bracket.
  4. Disconnect the electrical connector from the SSPS control module.

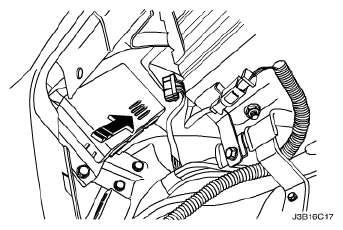

    Fig 1: Disconnecting Electrical Connector From SSPS Control Module
    G04717705Courtesy of SUZUKI OF AMERICA CORP.
