Fuse Block

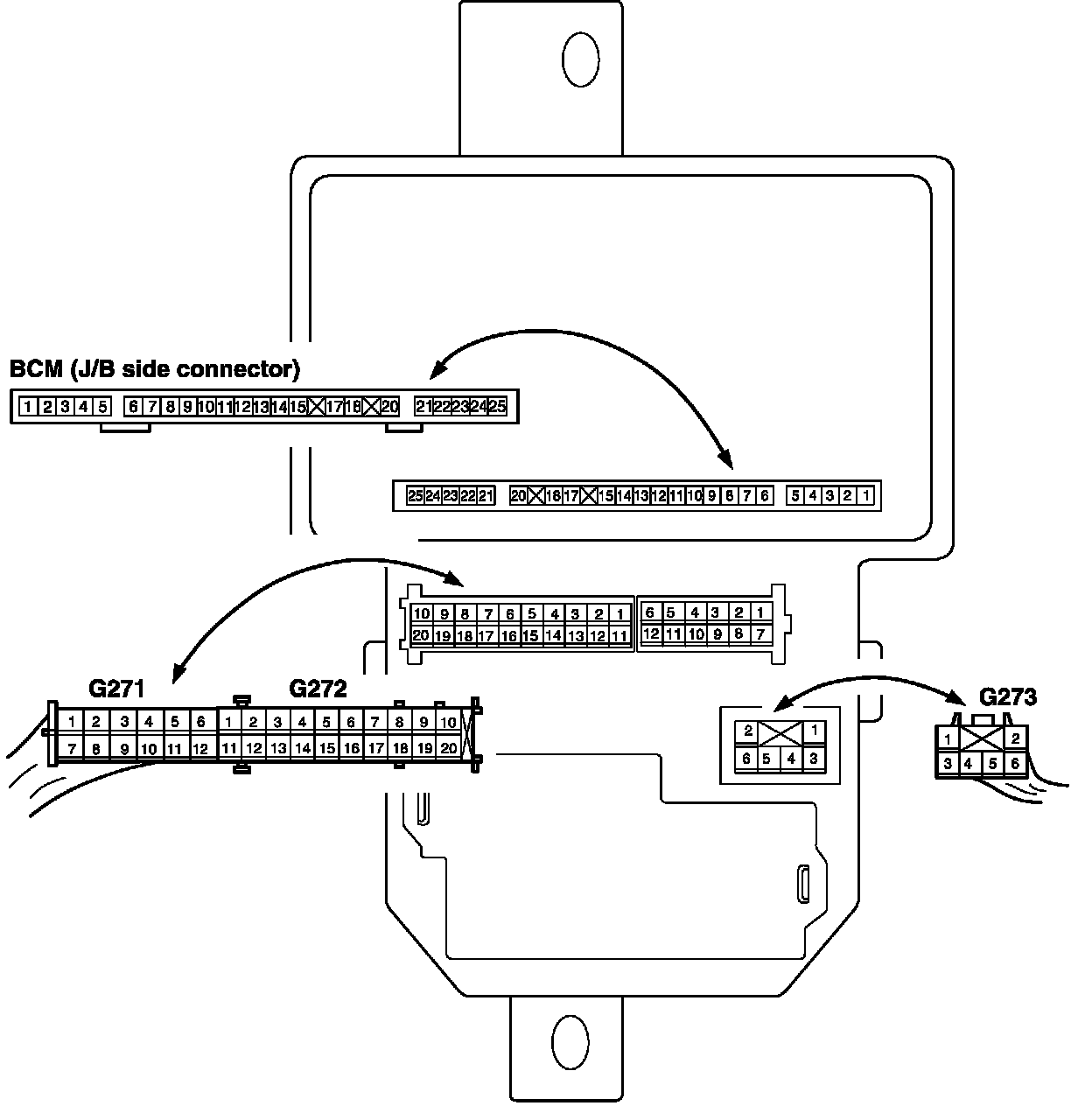

Junction Block (J/B) Connector / Fuse Layout BCM side:

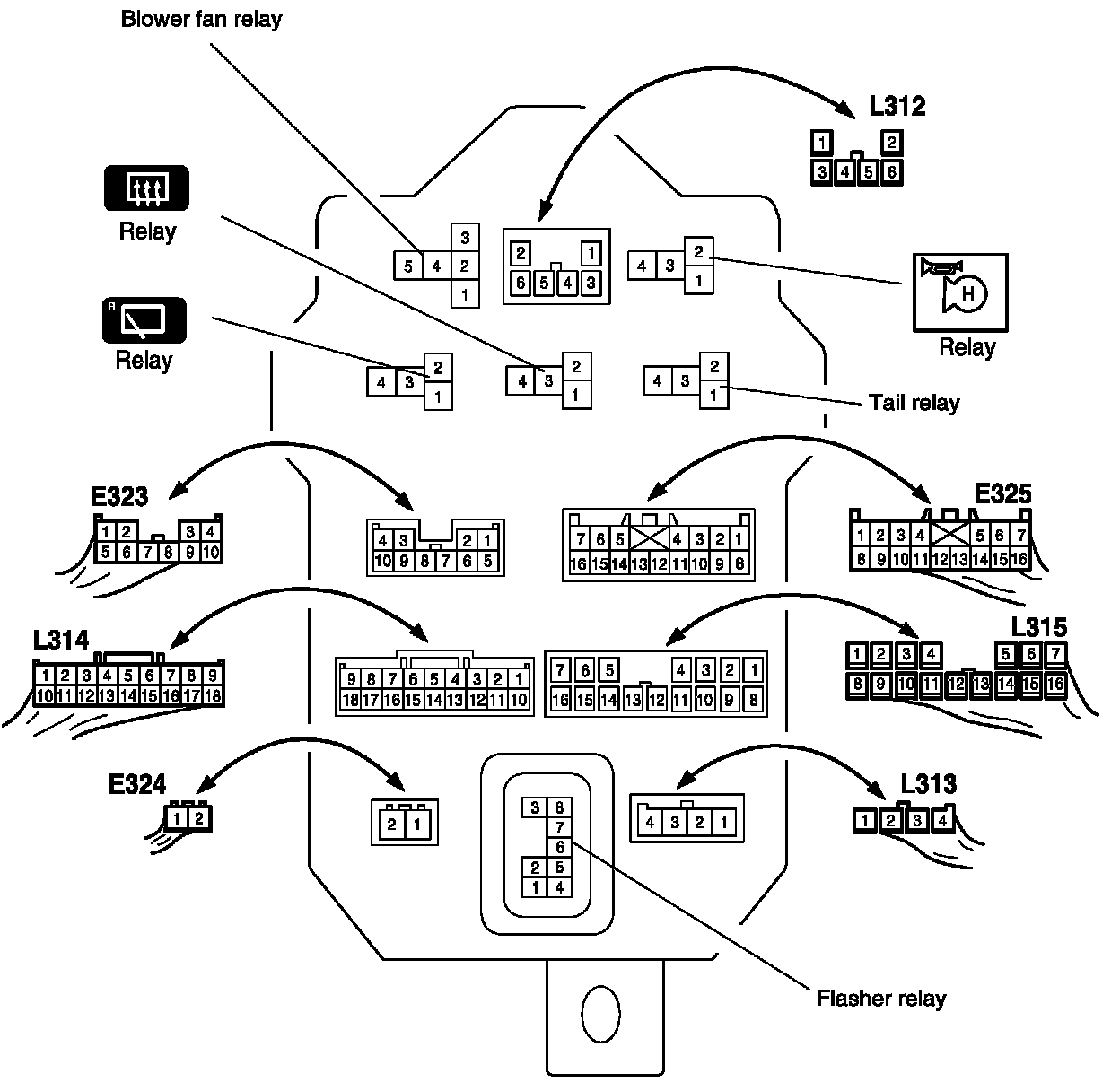

Junction Block (J/B) Connector / Fuse Layout Relay side:
