Automatic Gear Shift Table

Automatic Gear Shift Table
Automatic gear shift schedule is shown in the following table. Test-drive the vehicle on a flat road in the D position.

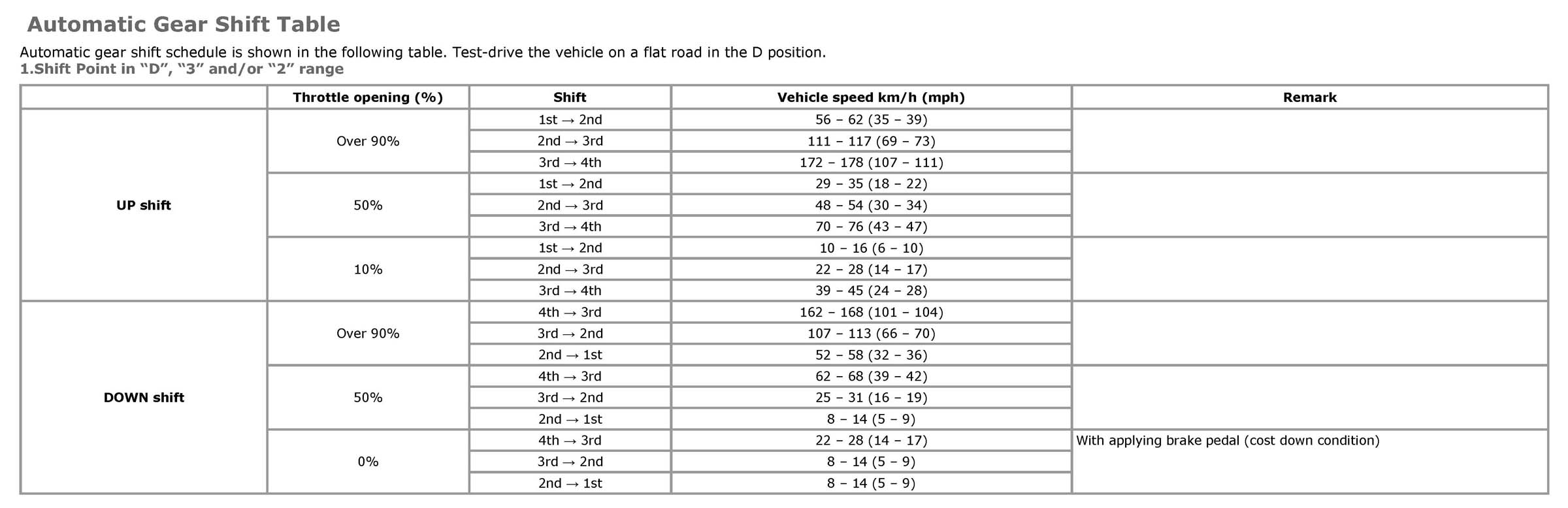

1.Shift Point in "D", "3" and/or "2" range

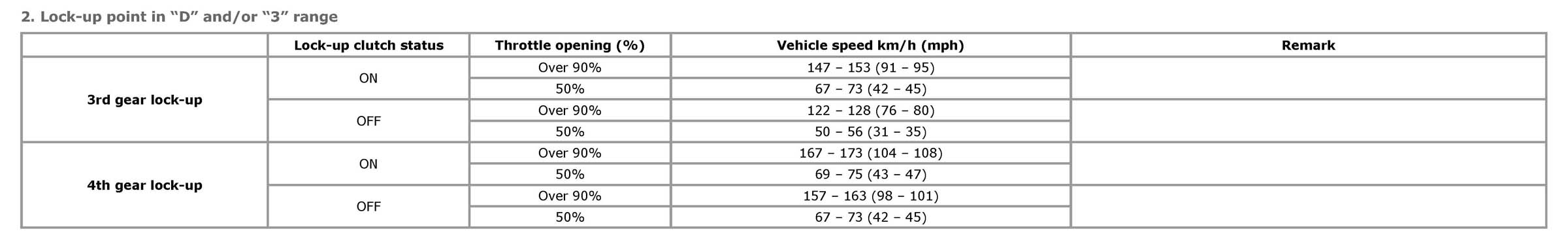

2. Lock-up point in "D" and/or "3" range
