Exhaust System Components
WARNING:
To avoid the danger of being burned, do not touch the exhaust system when the system is hot. Any service on the exhaust system should be performed when the system is cool.

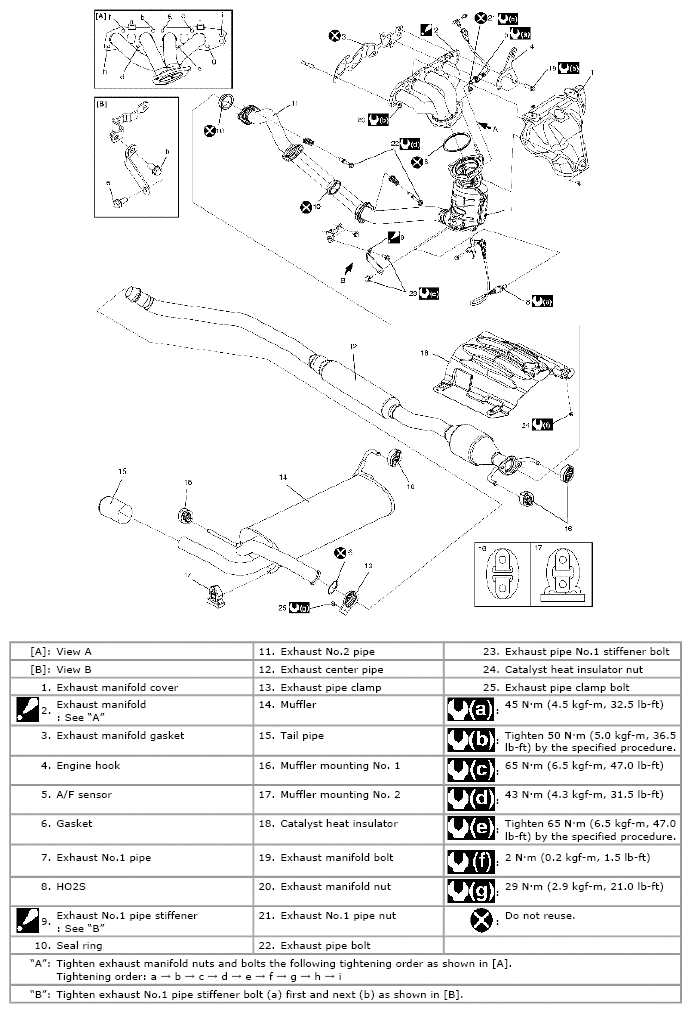

Fig 1: Identifying Exhaust System Components And Tightening Torques
Courtesy of SUZUKI OF AMERICA CORP.
