Generator Disassembly And Assembly: Assembly

Reference: GENERATOR INSPECTION .

Reference: GENERATOR COMPONENTS .

1. Install rectifier (4) to rear housing and then tighten screw (3).
2. Install regulator assembly (2) to rear housing and then tighten screw (1).
   Fig 1: Identifying Rectifier & Regulator Assembly

   Courtesy of SUZUKI OF AMERICA CORP.
3. Install insulator (2) and then tighten "B" terminal nut to specified torque.

   Tightening torque

   "B" terminal nut: 9 N.m (0.9 kg-m, 7.0 lb-ft)

4. Install cap (1) to insulator (2).
   Fig 2: Identifying Cap & Insulator

   Courtesy of SUZUKI OF AMERICA CORP.
5. Depress brush and then while holding it depressed, and insert pin (1) to hole of rear housing (2).
   Fig 3: Identifying Pin

   Courtesy of SUZUKI OF AMERICA CORP.
6. Install stator (2) to rear housing by aligning match marks provided before removal and then tighten screw (1).
   Fig 4: Identifying Stator

   Courtesy of SUZUKI OF AMERICA CORP.
7. If rear end bearing (2) is removed, install it by using hydraulic press (1).
   Fig 5: Installing Rear End Bearing Using Hydraulic Press

   Courtesy of SUZUKI OF AMERICA CORP.
8. If drive end bearing is removed, install it.
   1. Press-fit drive end bearing by using hydraulic press (1) and special tool.

      Special Tool

      1. 09913-76010
         Fig 6: Installing Drive End Bearing Using Hydraulic Press & Special Tool

         Courtesy of SUZUKI OF AMERICA CORP.
   2. Install retainer and then tighten retainer screw (1).
      Fig 7: Identifying Retainer Screw

      Courtesy of SUZUKI OF AMERICA CORP.
9. Insert stator to front housing and install pulley and pulley nut.
10. Hold rotor by using vise (1) and tighten pulley nut to specified torque.
    CAUTION: When using vise, put clean cloth (2) and aluminum plate (3) between rotor (4) and vise (1) so as not to cause damage to rotor.

    Tightening torque

    Pulley nut: 118 N.m (11.8 kg-m, 85.5 lb-ft)

    Fig 8: Tightening Pulley Nut

    Courtesy of SUZUKI OF AMERICA CORP.
11. Install front housing with rotor (1) to stator (2) by aligning match marks provided before removal and then tighten frame bolt (3) to specified torque.

    Tightening torque

    Frame bolt a: 4 N.m (0.4 kg-m, 3.0 lb-ft)

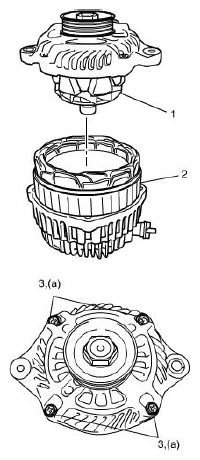

    Fig 9: Installing Front Housing With Rotor To Stator

    Courtesy of SUZUKI OF AMERICA CORP.
12. Remove pin (1) from rear housing (2).
    Fig 10: Identifying Pin

    Courtesy of SUZUKI OF AMERICA CORP.
13. Make sure that rotor turns smoothly.
