P/S Fluid Level Check

WARNING: This page is about a different car, the 2008 Suzuki Grand Vitara, 2007 Suzuki Grand Vitara, and 2006 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Reference: P/S FLUID CHANGE

With engine stopped, check fluid level indicated on P/S fluid reservoir, which should be between "UPPER" and "LOWER" marks. If it is lower than "LOWER" mark, fill fluid up to "UPPER" mark.

NOTE:

Be sure to use an specified power steering fluid.
Fluid level should be checked when fluid is cool.

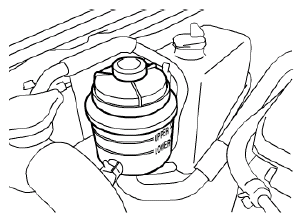

Fig 1: Identifying Fluid Level Mark
Courtesy of SUZUKI OF AMERICA CORP.
