Hold-In Test

WARNING: This page is about a different car, the 2008 Suzuki Grand Vitara, 2007 Suzuki Grand Vitara, and 2006 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. While connected as above with plunger out, disconnect negative lead (2) from terminal "M" (1).
  2. Check that plunger and pinion remain out. If plunger and pinion return inward, replace magnetic switch.

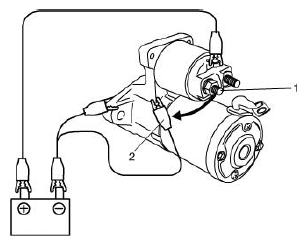

    Fig 1: Testing Starting Motor - Hold-In Test
    G04807655Courtesy of SUZUKI OF AMERICA CORP.
