Pull-In Test

WARNING: This page is about a different car, the 2008 Suzuki Grand Vitara, 2007 Suzuki Grand Vitara, and 2006 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect battery to magnetic switch as shown.
  2. Check that plunger and pinion move outward. If plunger and pinion don't move, replace magnetic switch.
    NOTE: Before testing, disconnect lead wire from terminal "M".

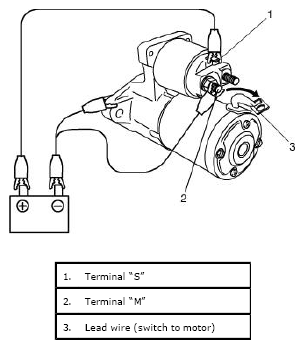

    Fig 1: Testing Starting Motor - Pull-In Test
    G04807654Courtesy of SUZUKI OF AMERICA CORP.
