4WD Control Module (If EQPD) Connector End View (G26)

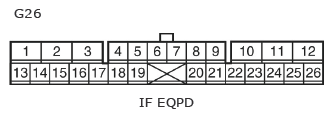

Fig 1: 4WD Control Module (If EQPD) Connector End View (G26)
G11135679Courtesy of SUZUKI OF AMERICA CORP.
