System
>>
Engine General Information And Diagnosis
>>
General Description
>>
Electronic Control System Description
>>
ECM Input / Output Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
ECM Input / Output Circuit Diagram

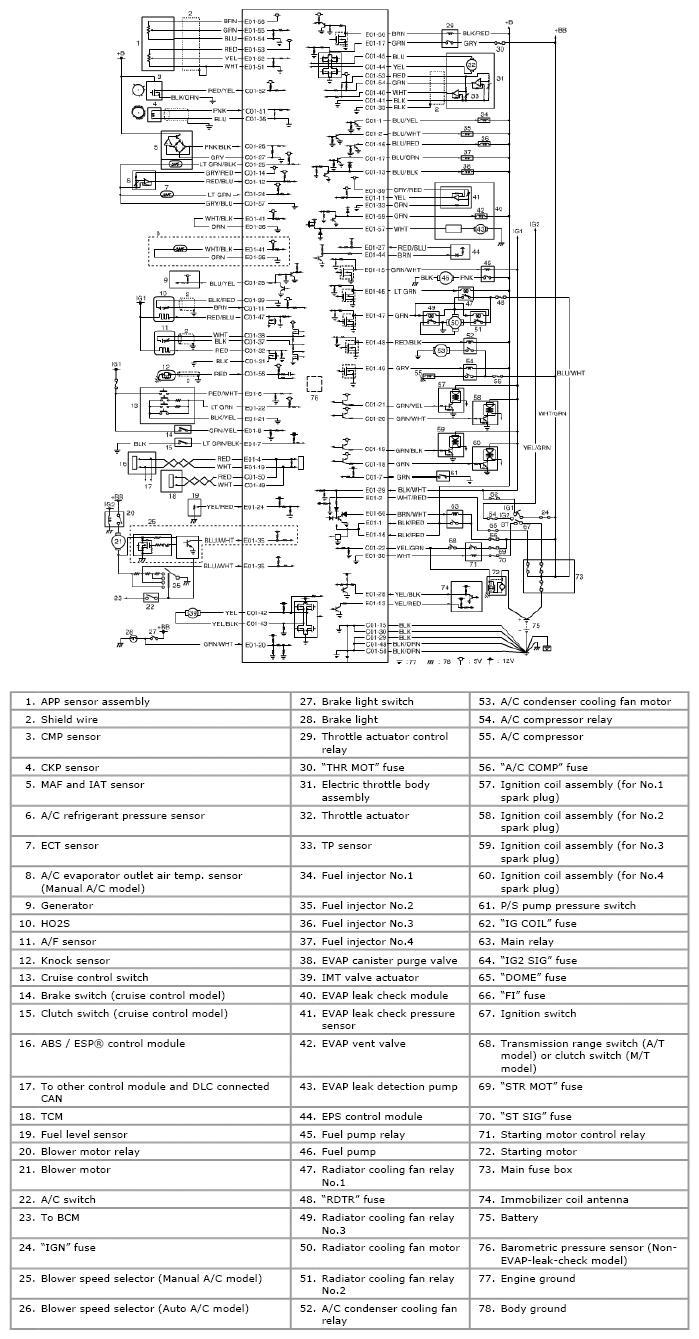

Fig 1: ECM Input/Output Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
