Major Components Of A/C System

WARNING: This page is about a different car, the 2007 Suzuki Grand Vitara and 2006 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

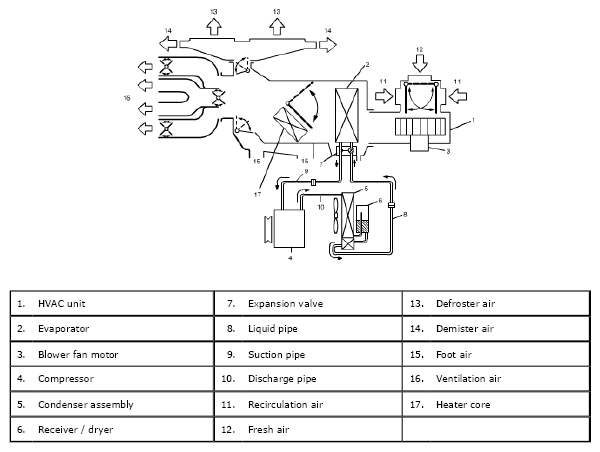

Fig 1: Identifying Major Components Of A/C System
G04809210Courtesy of SUZUKI OF AMERICA CORP.
