Keyless Start Control Module Transmission Data

WARNING: This page is about a different car, the 2006 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

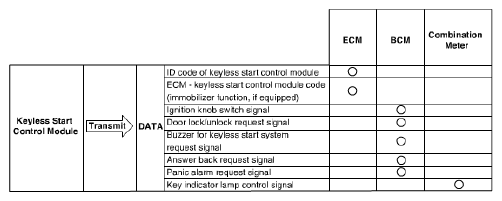

Fig 1: Keyless Start Control Module Transmission Data
G04810055Courtesy of SUZUKI OF AMERICA CORP.
