Keyless Start Control Module Removal And Installation: Removal
WARNING: This page is about a different car, the 2006 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect negative cable at battery.
- Remove glove box from instrument panel.

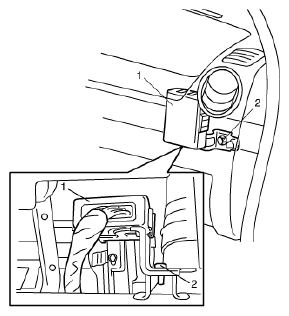

- Disconnect connector from keyless start control module (1).
- Remove keyless start control module mounting bolt (2) and then remove keyless start control module with its bracket from steering support member.
