    Fig 1: View Of Fuel Rail Front Fuel Hose
    GM1530525Courtesy of GENERAL MOTORS CORP.
    CAUTION: Do not allow smoking or the use of open flames in the area where work on the fuel or EVAP system is taking place. Anytime work is being done on the fuel system, disconnect the negative battery cable, except for those tests where battery voltage is required.
  1. Relieve the fuel pressure. Refer to Fuel Pressure Relief .
  2. Disconnect the front fuel hose from the fuel rail.
    3. Fig 2: Disconnecting And Connecting Fuel Pipe Front Fuel Hose
    GM1530526Courtesy of GENERAL MOTORS CORP.
  3. Lift and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .
  4. Disconnect the front fuel hose from the fuel pipe.
    5. Fig 3: Disconnecting And Connecting Fuel Pipe Rear Fuel Hose
    GM1530527Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the rear fuel hose from the fuel pipe.
    6. Fig 4: View Of Pipe Clamps
    GM1530161Courtesy of GENERAL MOTORS CORP.
  6. Remove the fuel pipe mounting plastic bolt.
    7. Fig 5: View Of Undercarriage
    GM1530162Courtesy of GENERAL MOTORS CORP.
  7. Remove the fuel pipe mounting screws and cover.
  8. Remove the fuel pipe.
    9. Fig 6: Removing And Installing Fuel Pump Access Cover
    GM1376163Courtesy of GENERAL MOTORS CORP.
  9. Remove the fuel pump access cover. Refer to Fuel Sender Assembly Replacement .

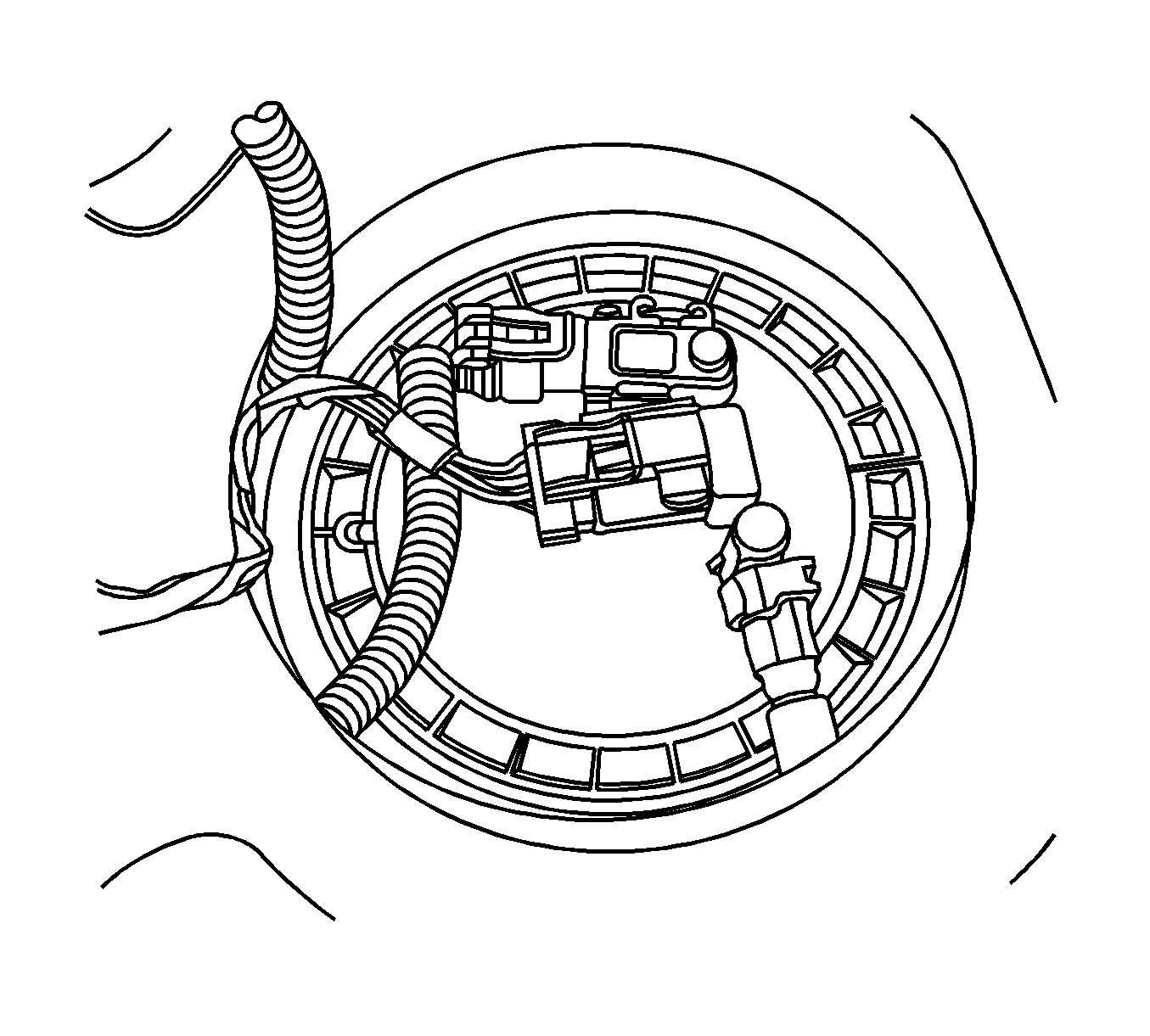

    10. Fig 7: View Of Fuel Pump Fuel Hose
    GM1530529Courtesy of GENERAL MOTORS CORP.
  10. Disconnect the fuel hose from the fuel pump.
    11. Fig 8: View Of Fuel Tank
    GM1530532Courtesy of GENERAL MOTORS CORP.
  11. Remove the fuel tank. Refer to Fuel Tank Replacement .
  12. Remove rear fuel hose.
