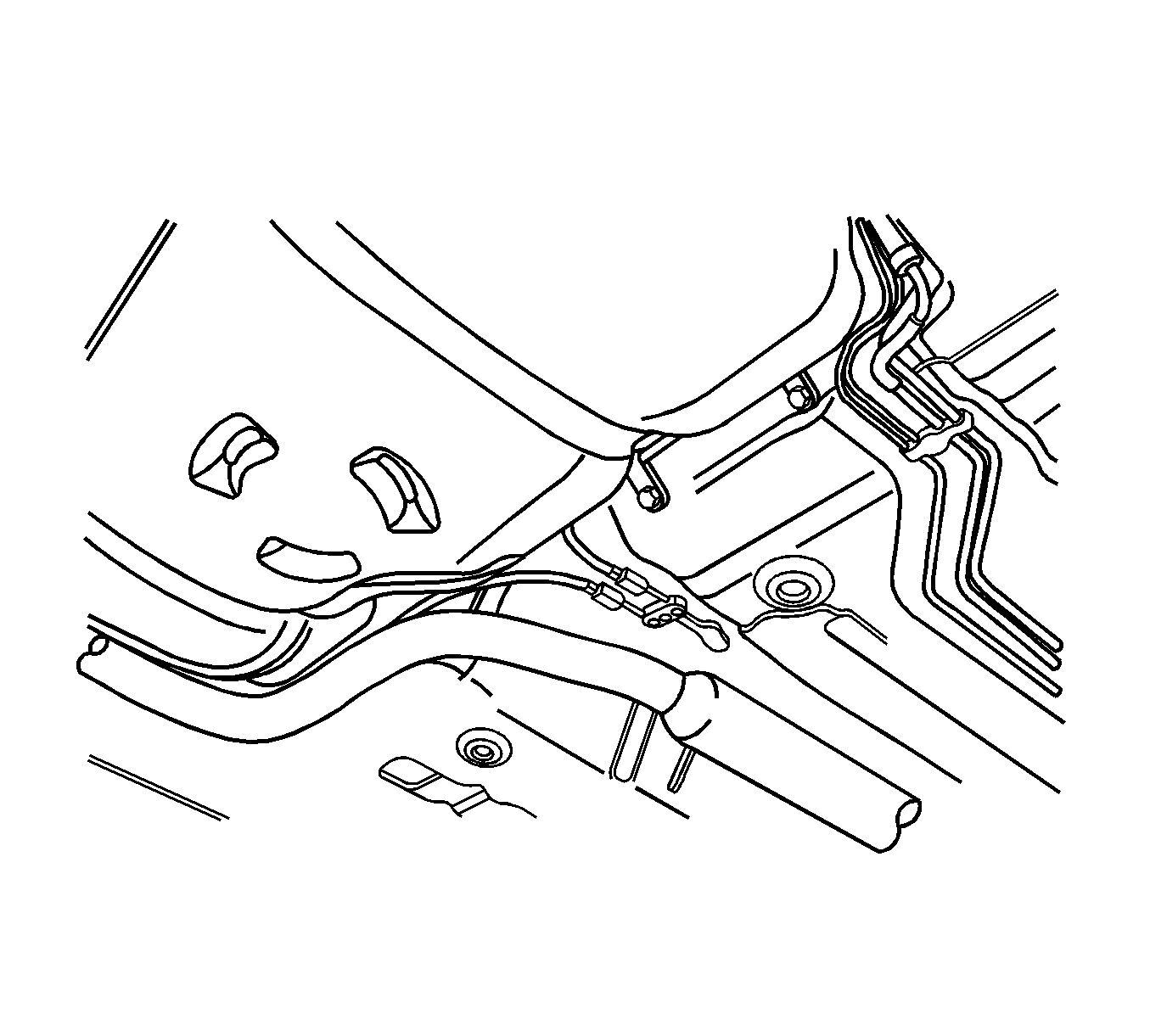

    Fig 1: View of Parking Brake Cable Retainer Clamps
    GM1376156Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Relieving Fuel Pressure Caution .
  1. Relieve the fuel pressure. Refer to Fuel Pressure Relief .
    2. CAUTION: Refer to Battery Disconnect Caution .
  2. Disconnect the negative battery cable.
  3. Drain the fuel tank.
  4. Disconnect the parking brake cable retainer clamps and the support along the fuel tank to provide clearance for the tank.

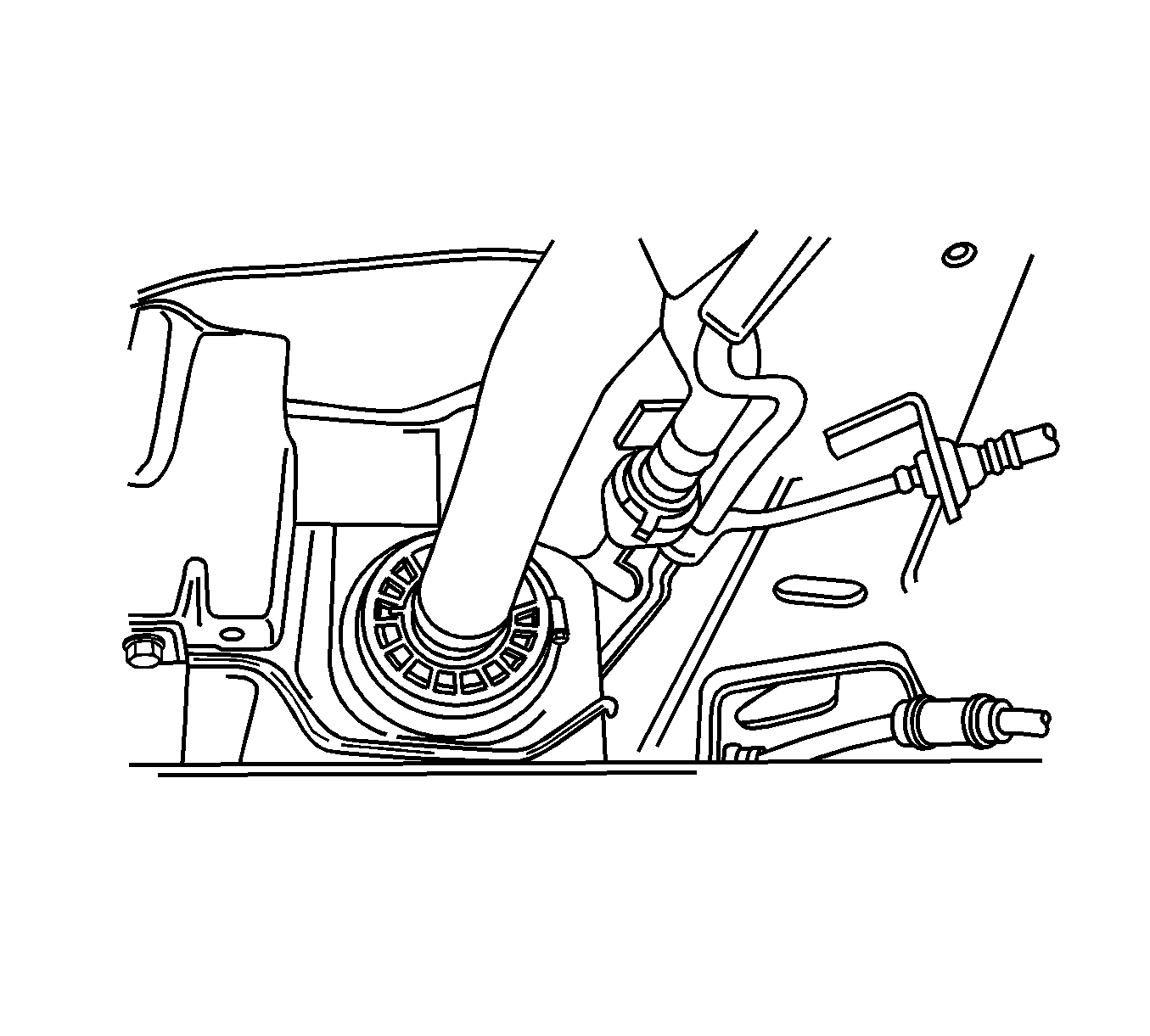

    5. Fig 2: View of Fuel Tank Filler Tube
    GM1376157Courtesy of GENERAL MOTORS CORP.
  5. Remove the fuel tank filler tube clamp at the fuel tank.
  6. Disconnect the fuel tank filler tube.
  7. Disconnect the fuel tank filler tube at the fuel tank.
  8. Disconnect the canister vapor tube at the control valve vapor tube.

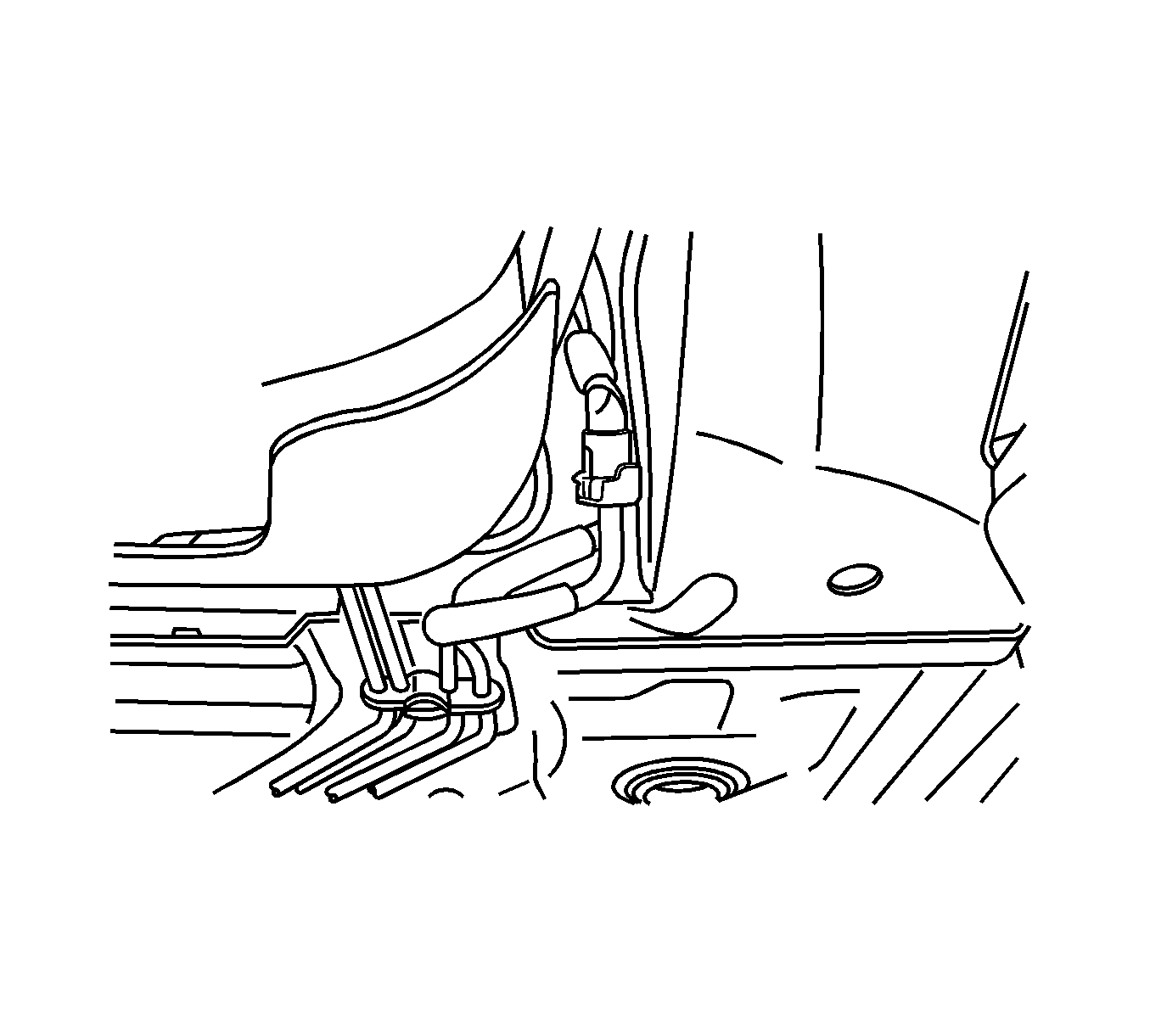

    9. Fig 3: View of Fuel Line
    GM1376158Courtesy of GENERAL MOTORS CORP.
  9. Disconnect the fuel line near the right front of the fuel tank.
  10. Disconnect the wiring harness clips and the fuel line clips as needed.
    11. Fig 4: View of Front Exhaust Pipe
    GM1376159Courtesy of GENERAL MOTORS CORP.
  11. Remove the front exhaust pipe. Refer to Front Pipe Replacement .
    12. Fig 5: Identifying Fuel Tank Retaining Nuts
    GM1376160Courtesy of GENERAL MOTORS CORP.
  12. Support the fuel tank.
  13. Remove the fuel tank retaining nuts.
  14. Carefully lower the fuel tank.
  15. Remove the fuel tank.
  16. Transfer any parts as needed.
