Removal ProcedureInstallation Procedure

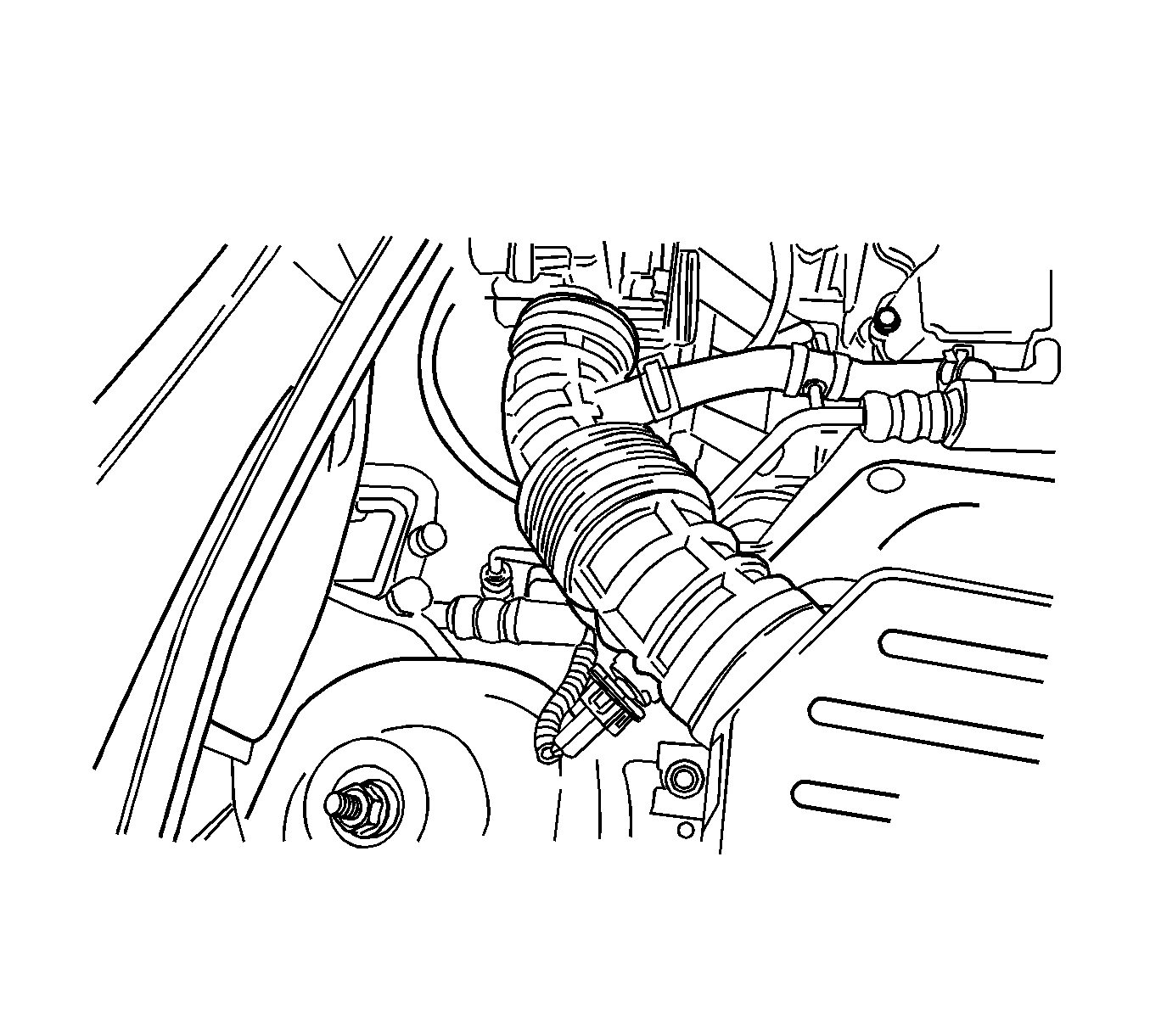

    Fig 1: Locating Intake Ducting To Engine
    GM1241530Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution .
  1. Disconnect the negative battery cable.
  2. Disconnect the intake air temperature (IAT) sensor connector.
  3. Remove the IAT sensor by pulling it out of the air intake tube.
