Removal ProcedureInstallation Procedure

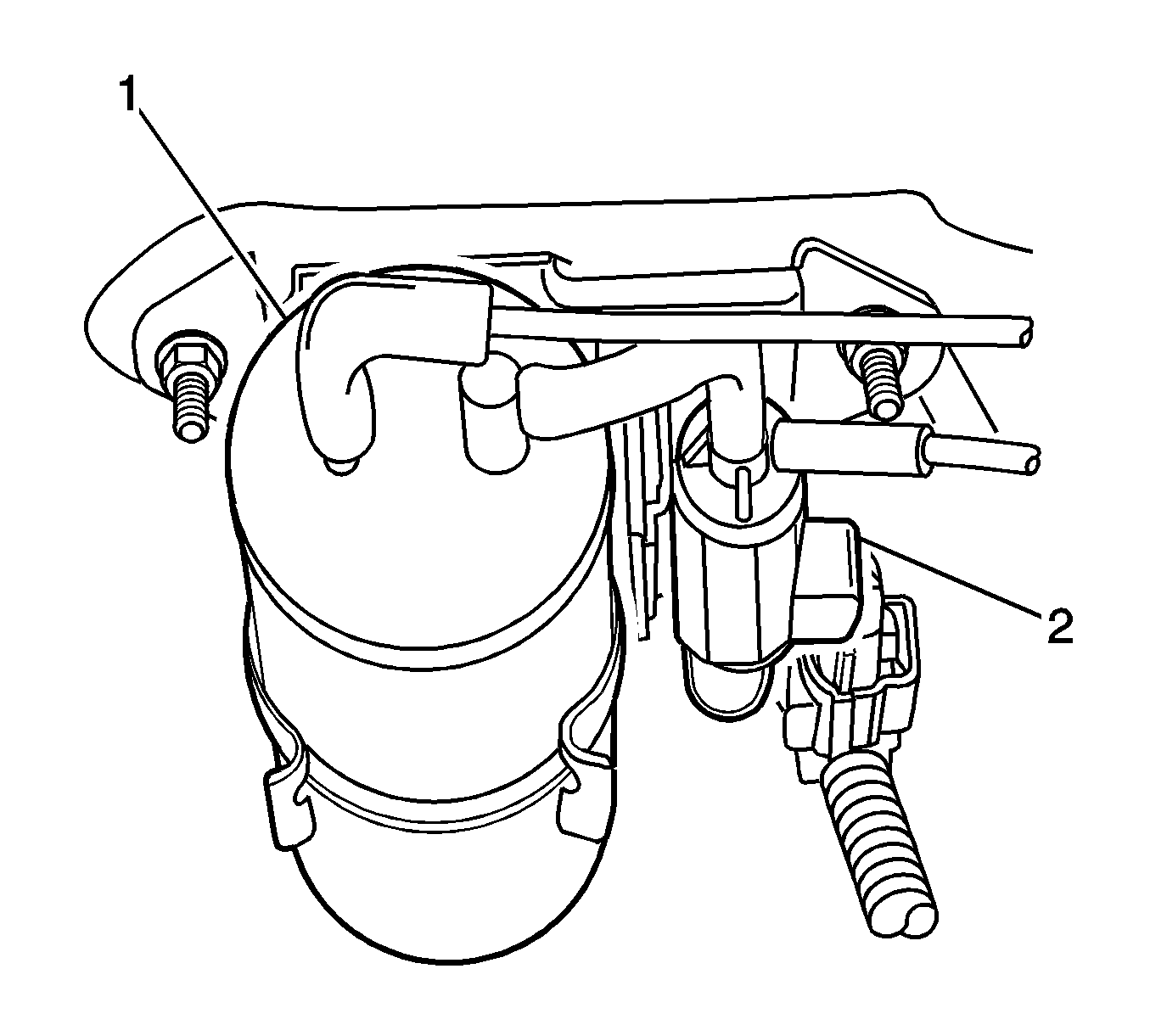

    Fig 1: Identifying Intake Manifold Tuning Valve Solenoid
    GM1464836Courtesy of GENERAL MOTORS CORP.
  1. Remove the vacuum hoses from the intake manifold (IMT) vacuum reservoir (1).
  2. Remove the IMT valve reservoir (1).
