Blower Motor Control Module Connector End View

Blower Motor Control Module

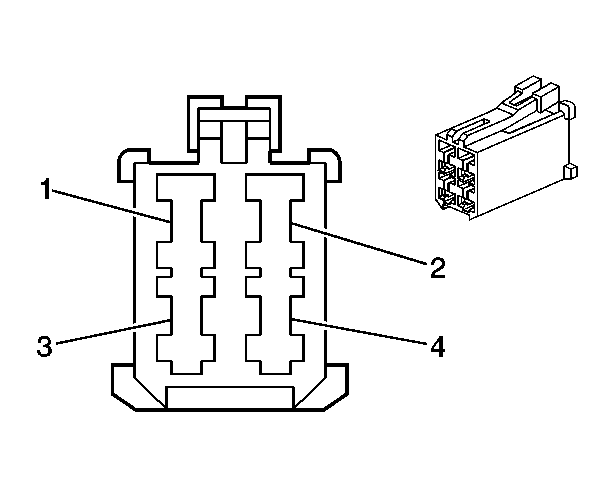

GM1468409Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610043
  • 4-Way F
Pin Wire Color Circuit No. Function
1 D-BU/YE - Blower Motor Speed Control
2 D-BU/RD - Blower Motor Control
3 - - Not Used
4 BK - Ground
