Inflatable Restraint Front Discriminating Sensor Connector End View

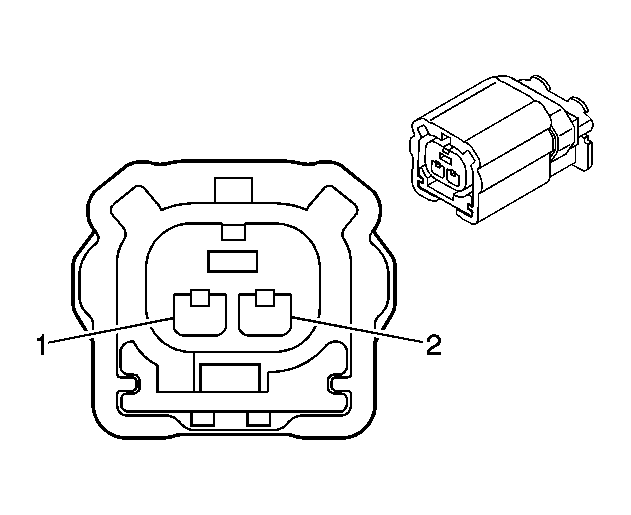

Inflatable Restraint Front Discriminating Sensor Connector End View/Part Information/Terminal Identification - Left

GM1500894Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • YAZAKI 7283-6507-70
  • 2-Way F Connector (YE)
Pin Wire Color Circuit No. Function
1 YE/BK - Front Discriminating Sensor - Left - Low
2 YE - Front Discriminating Sensor - Left - High
Inflatable Restraint Front Discriminating Sensor Connector End View/Part Information/Terminal Identification - Right

GM1500894Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • YAZAKI 7283-6507-70
  • 2-Way F Connector (YE)
Pin Wire Color Circuit No. Function
1 L-GN - Front Discriminating Sensor - Left - Low
2 BN/WH - Front Discriminating Sensor - Left - High
