Inflatable Restraint I/P Module Connector End View

Inflatable Restraint I/P Module Connector End View/Part Information/Terminal Identification (w/o Passenger Presence System) (PPS)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		FC 160201724 2-Way Connector (YE)
Pin	Wire Color	Circuit No.	Function
1	WH/D-GN	-	I/P Module - High Control
2	D-GN/WH	-	I/P - Low Control

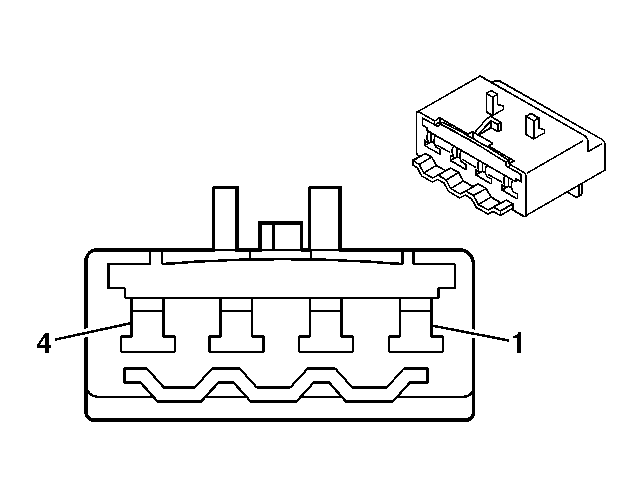

Inflatable Restraint I/P Module Connector End View/Part Information/Terminal Identification (w/Passenger Presence System) (PPS)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		FC 154550400 4-Way F Connector (YE)
Pin	Wire Color	Circuit No.	Function
1	D-GN/WH	-	I/P Module - Stage 2 - Low Control
2	WH/BK	-	I/P Module - Stage 2 - High Control
3	GY	-	I/P Module - Stage 1 - Low Control
4	PU	-	I/P Module - Stage 1 - High Control
