Removal ProcedureInstallation Procedure

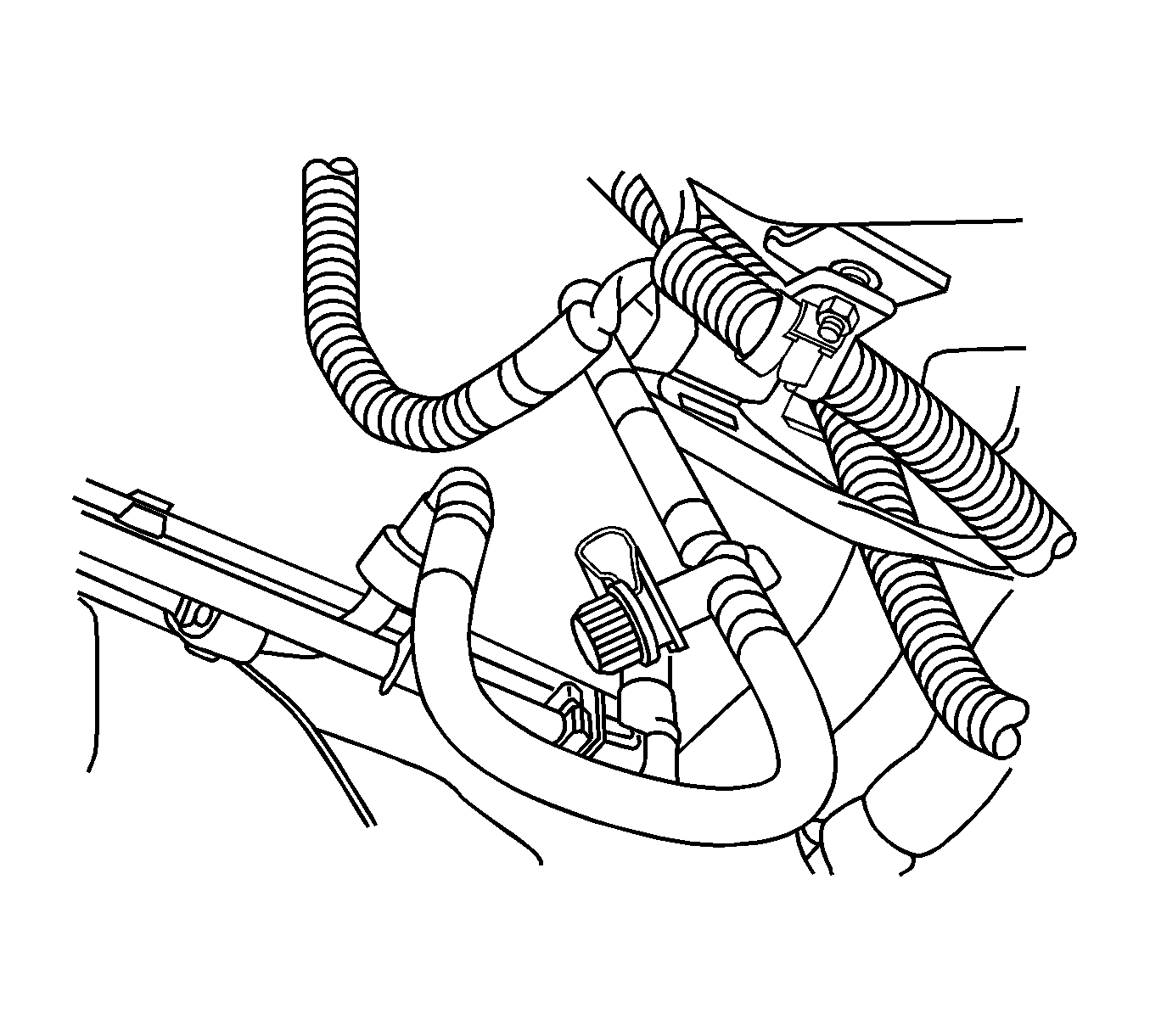

Fig 1: View Of EVAP Canister Purge Solenoid Valve

Courtesy of GENERAL MOTORS CORP.

CAUTION: Do not allow smoking or the use of open flames in the area where work on the fuel or EVAP system is taking place. Anytime work is being done on the fuel system, disconnect the negative battery cable, except for those tests where battery voltage is required.

Disconnect the evaporative emission (EVAP) canister purge solenoid valve to intake manifold hose.

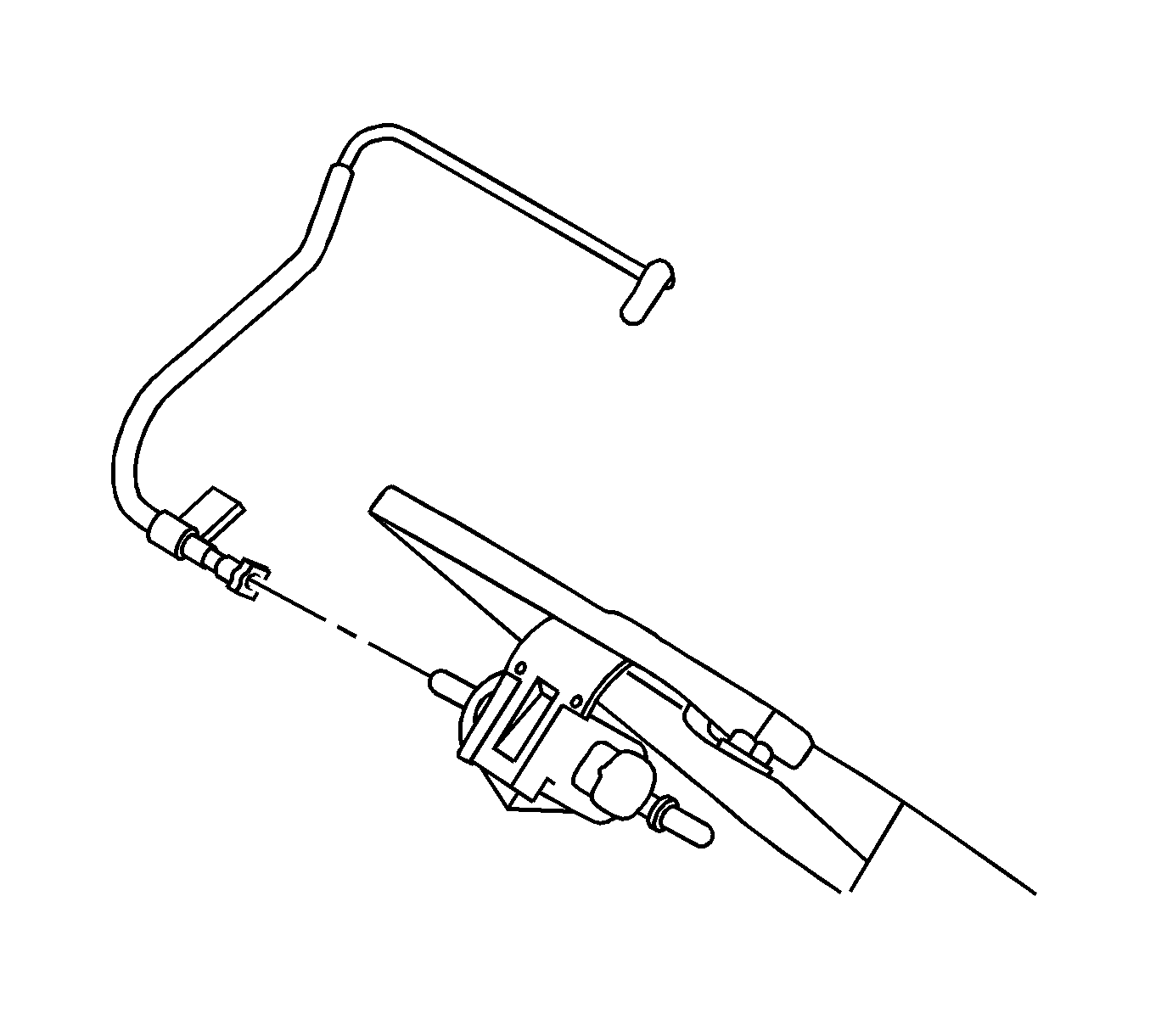

Fig 2: View of EVAP Canister Front Tube

Courtesy of GENERAL MOTORS CORP.

Remove the EVAP canister front tube from the EVAP canister purge solenoid valve and the EVAP canister vapor pipe.

Fig 3: Connecting And Disconnecting EVAP Canister Pipe From EVAP Canister Vapor Rear Tube

Courtesy of GENERAL MOTORS CORP.

Disconnect the EVAP canister pipe from the EVAP canister vapor rear tube.

Fig 4: View Of Pipe Clamps

Courtesy of GENERAL MOTORS CORP.

Lift and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the EVAP canister vapor pipe plastic bolt and cover.

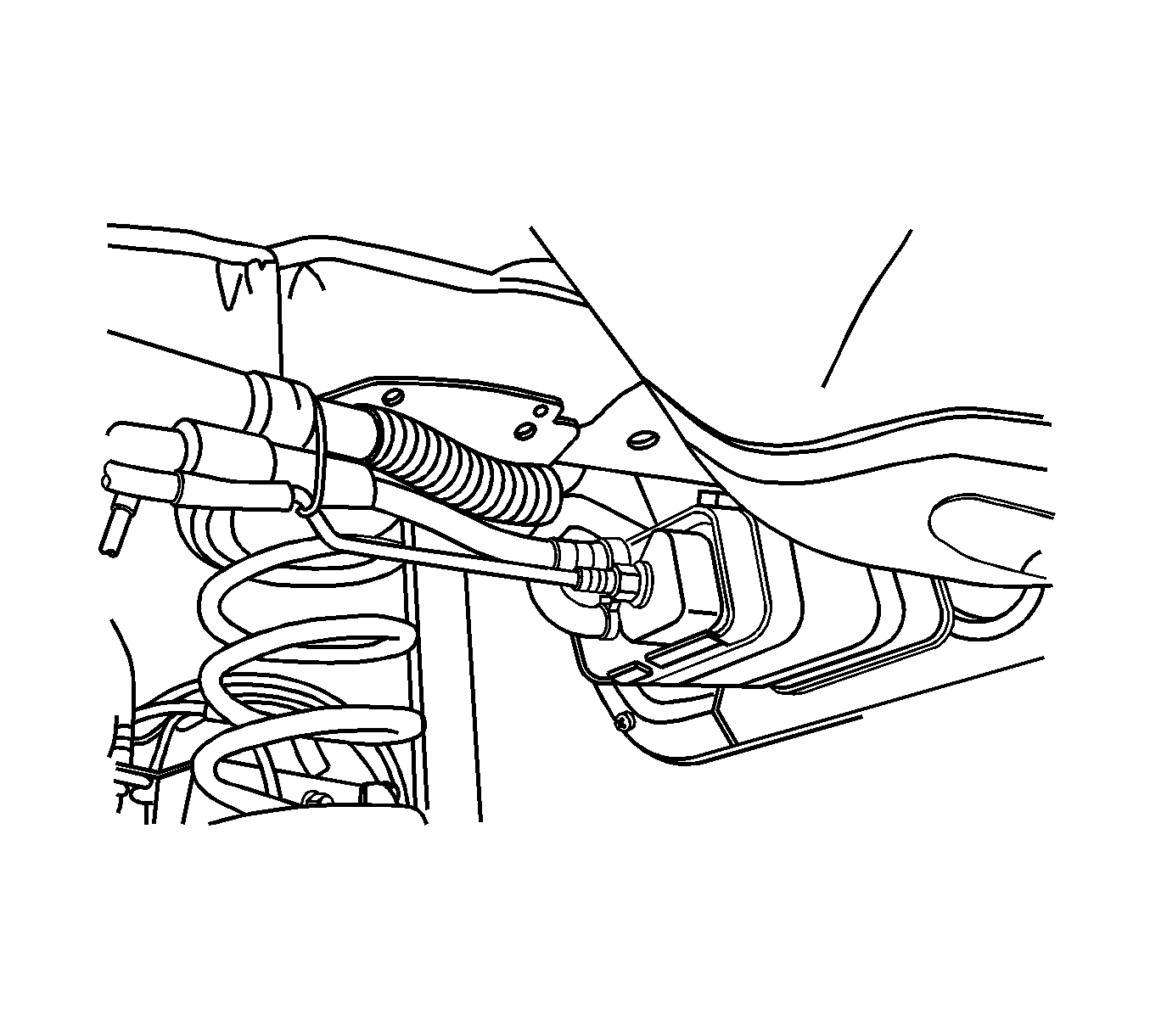

Fig 5: View Of Undercarriage

Courtesy of GENERAL MOTORS CORP.

Remove the EVAP canister vapor pipe 4 mounting screws and cover.
Remove the EVAP canister vapor pipe.

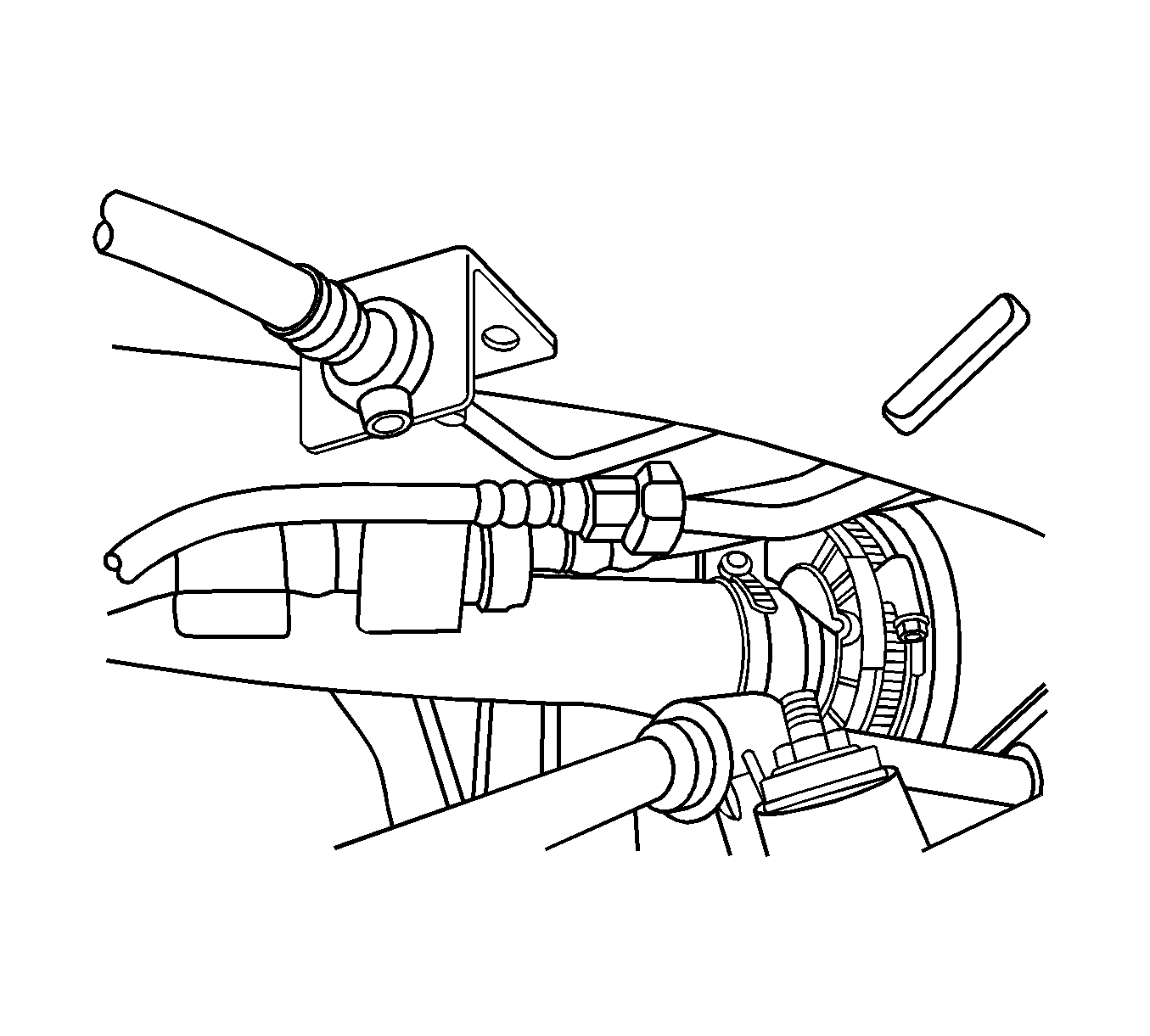

Fig 6: View Of EVAP Canister Purge And Vapor Rear Tubes

Courtesy of GENERAL MOTORS CORP.

Remove the EVAP canister vapor rear tube clip.
Disconnect the EVAP canister vapor rear tube.
Remove the EVAP canister purge tube clip.
Disconnect the EVAP canister purge tube.

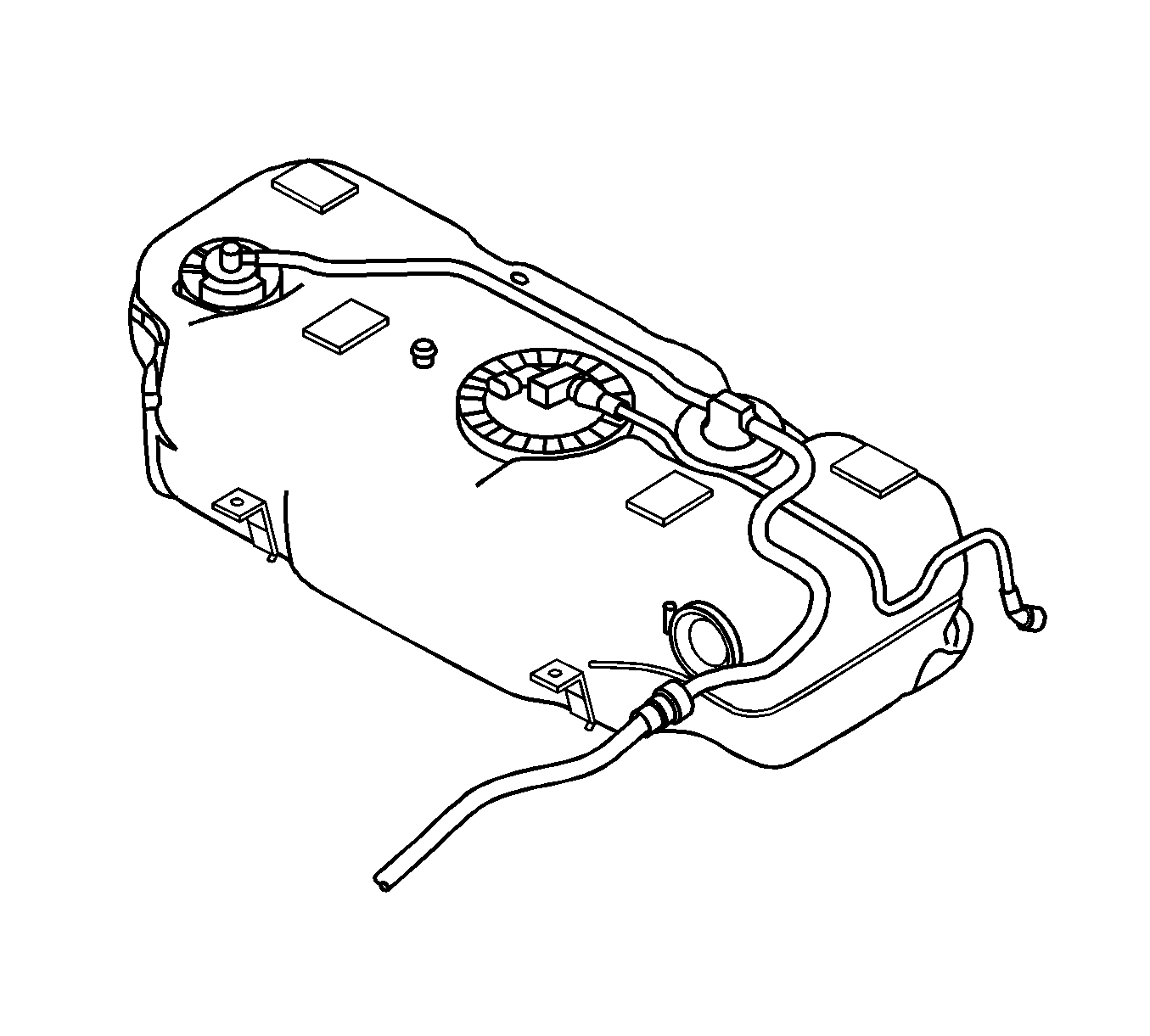

Fig 7: View Of Fuel Tank And Rollover Valve Tube

Courtesy of GENERAL MOTORS CORP.

Remove the fuel tank. Refer to Fuel Tank Replacement .
Remove the rollover valve tube from the fuel tank.
