Entertainment/Communication Connector End Views (Hatchback)

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

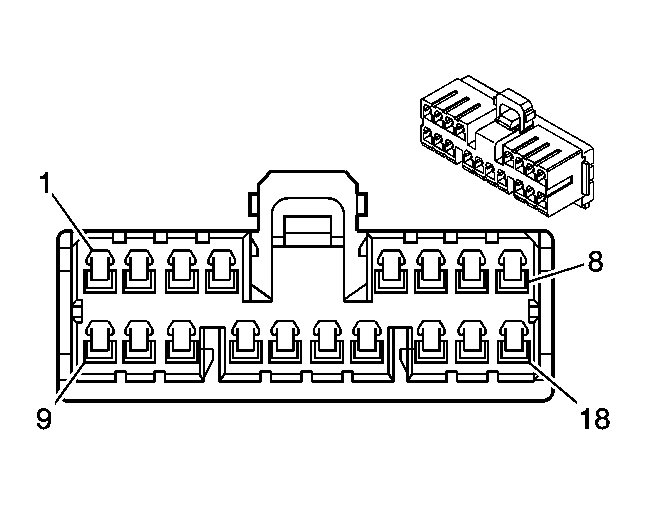

Radio (Base)

GM1466978Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 173853-1
  • 18-Way M 070 Series Multilock Plug 18P
Pin Wire Color Circuit No. Function
1 L-BU 200 Right Front Speaker Output (+)
2 D-BU 46 Right Rear Speaker Output (+)
3 BN/WH 309 Right Park Lamp Supply Voltage
4 YE 43 Accessory Voltage
5 OG 540 Battery Positive Voltage
6 - - Not Used
7 GY 199 Right Front Speaker Output (+)
8 PU 201 Left Front Speaker Output (+)
9 BN 117 Right Front Speaker Output (-)
10 WH 115 Right Rear Speaker Output (-)
11 BK 450 Ground
L-GN/RD 230 Instrument Panel Lamps Dimming Control (w/Dimmer)
12-13 - - Not Used
14 BK 450 Ground
15-16 - - Not Used
17 D-GN 116 Left Rear Speaker Output (-)
18 L-GN 118 Left Front Speaker Output (-)

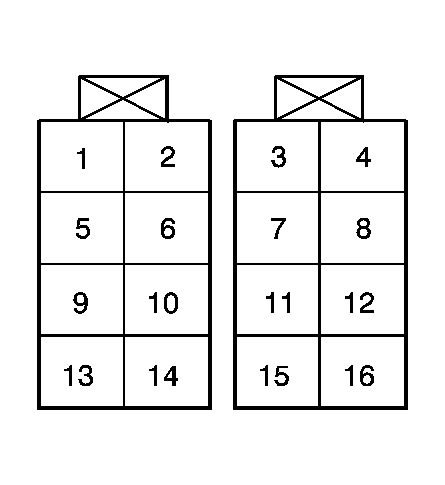

Radio (RDS)

GM1348535Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 936593-2
  • 16-Way
Pin Wire Color Circuit No. Function
1 D-BU 46 Right Rear Speaker Output (+)
2 WH 115 Right Rear Speaker Output (-)
3 BN/WH 309 Right Park Lamp Supply Voltage
4 - - Not Used
5 L-BU 200 Right Front Speaker Output (+)
6 BN 117 Right Front Speaker Output (-)
7 - - Not Used
8 OG 540 Left Rear Speaker Output (-)
9 PU 201 Left Front Speaker Output (+)
10 L-GN 118 Left Front Speaker Output (-)
11 - - Not Used
12 BK 450 Ground
L-GN/RD 230 IP Lamp Dimmimg Control
13 GY 199 Left Rear Speaker Output (+)
14 D-GN 116 Left Rear Speaker Output (-)
15 YE 43 Accessory Voltage
16 BK 450 Ground
Speaker - Left Front

GM1467007Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610043
  • 2-Way Connector (WH)
Pin Wire Color Circuit No. Function
1 PU 201 Left Front Speaker Output (+)
2 L-GN 118 Left Front Speaker Output (-)
Speaker - Left Rear

GM1467007Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610043
  • 2-Way F 250 Series (WH)
Pin Wire Color Circuit No. Function
1 D-GN 116 Left Rear Speaker Output (-)
2 GY 199 Left Rear Speaker Output (+)
Speaker - Right Front

GM1467007Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610043
  • 2-Way Connector F (WH)
Pin Wire Color Circuit No. Function
1 L-BU 200 Right Front Speaker Output (+)
2 BN 117 Right Front Speaker Output (-)
Speaker - Right Rear

GM1467007Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610043
  • 2-Way F 250 Series (WH)
Pin Wire Color Circuit No. Function
1 WH 115 Right Rear Speaker Output (+)
2 D-BU 46 Right Rear Speaker Output (-)
Tweeter - Left

GM1467020Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610070
  • 2-Way F 090 (2.3 mm) Series (WH)
Pin Wire Color Circuit No. Function
1 L-GN 118 Left Front Speaker Output (-)
2 PU 201 Left Front Speaker Output (+)
Tweeter - Right

GM1467020Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610070
  • 2-Way F 090 (2.3 mm) Series (WH)
Pin Wire Color Circuit No. Function
1 BN 117 Right Front Speaker Output (-)
2 L-BU 200 Right Front Speaker Output (+)
