Entertainment/Communication Connector End Views (Notchback)

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

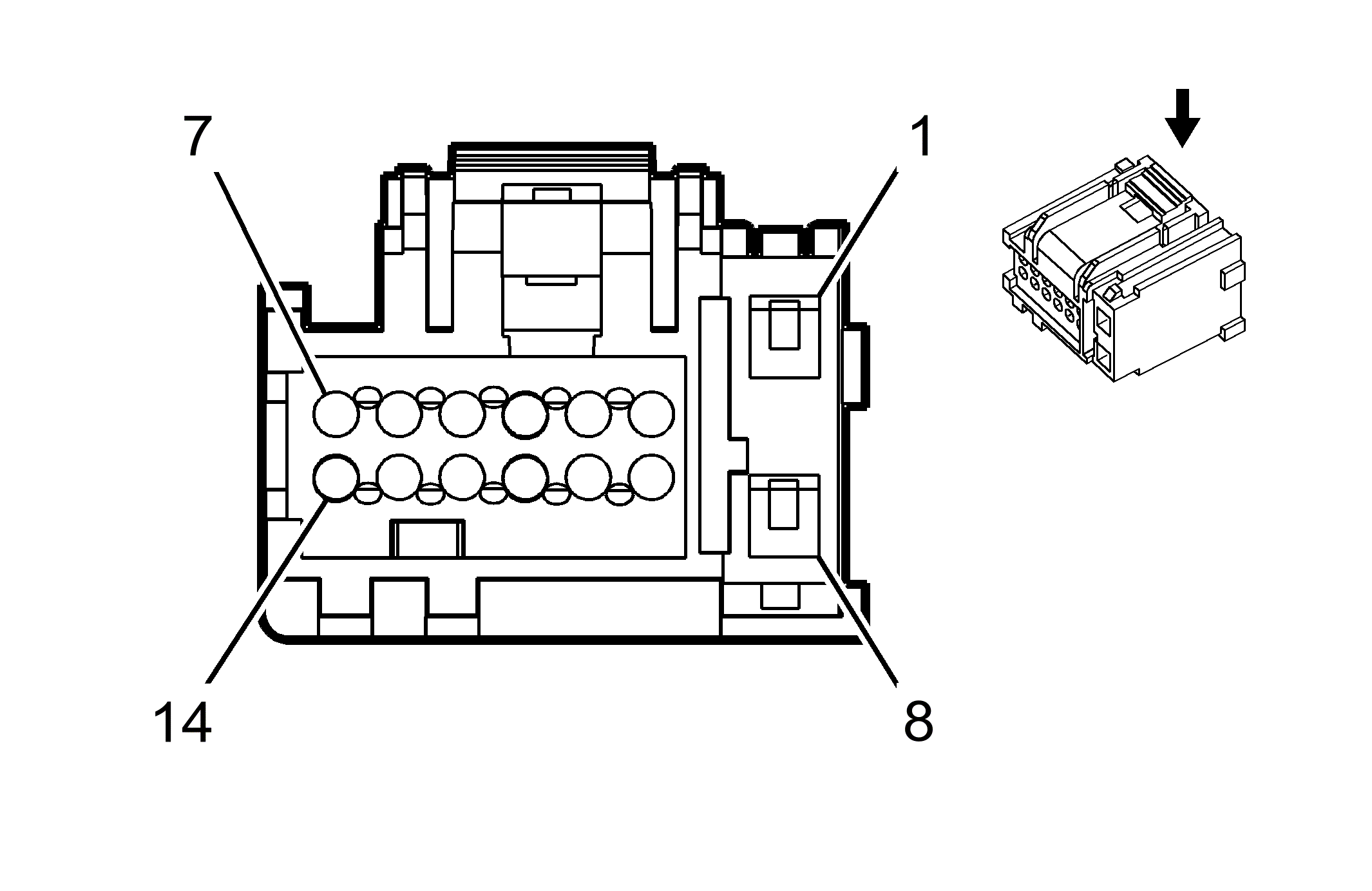

Radio Connector A

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		PED 15464950 14-Way M
Pin	Wire Color	Circuit No.	Function
1	RD/WH	-	Battery Voltage
2	BN	-	Speaker Feed - Left Front
3	L-GN	-	Speaker Feed - Right Front
4-5	-	-	Not Used
6	D-GN	-	Power Antenna Relay Feed - Coil
7	BN/WH	-	Park Lamp Feed - Right
8	BK	-	Ground
9	GY	-	Speaker Return - Left Front
10	D-GN	-	Speaker Return - Right Front
11	-	-	Not Used
12	BN/WH	-	Remote Radio Return - Audio
13	-	-	Not Used
14	BN/WH	-	Instrument Panel Lamps Dimmer Module Output

Radio Connector B

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		PED 15394150 16-Way M
Pin	Wire Color	Circuit No.	Function
1-4	-	-	Not Used
5	BN	-	Speaker Feed - Left Rear
6	D-BU	-	Speaker Feed - Right Rear
7-11	-	-	Not Used
12	D-BU	-	Radio Control Signal - Steering Column
13	YE	-	Speaker Return - Left Rear
14	L-BU	-	Speaker Return - Right Rear
15	-	-	Not Used
16	YE	-	Ignition Voltage

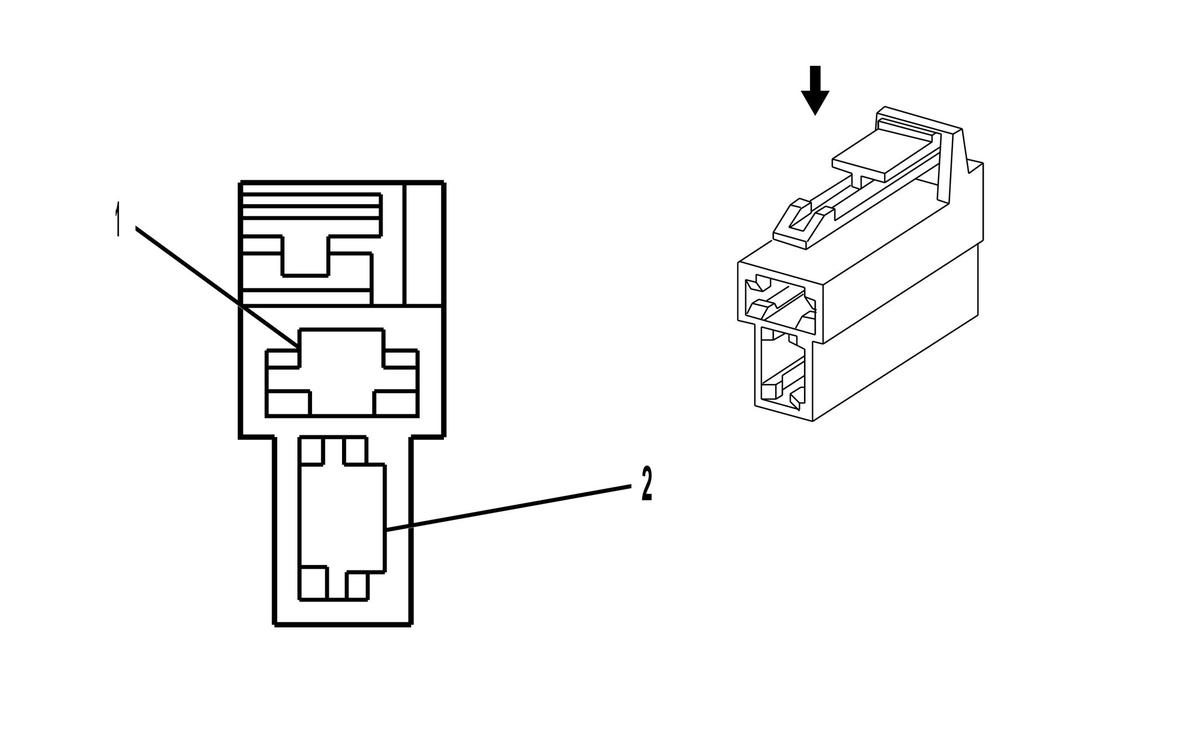

Speaker - Left Front

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 610043 2-Way Connector (WH)
Pin	Wire Color	Circuit No.	Function
1	BN	-	Left Front Speaker Output (+)
2	GY	-	Left Front Speaker Output (-)

Speaker - Left Rear

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 610043 2-Way F 250 Series (WH)
Pin	Wire Color	Circuit No.	Function
1	YE	-	Left Rear Speaker Output (-)
2	BN	-	Left Rear Speaker Output (+)

Speaker - Right Front

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 610043 2-Way Connector F (WH)
Pin	Wire Color	Circuit No.	Function
1	L-GN	-	Right Front Speaker Output (+)
2	D-GN	-	Right Front Speaker Output (-)

Speaker - Right Rear

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 610043 2-Way F 250 Series (WH)
Pin	Wire Color	Circuit No.	Function
1	L-BU	-	Right Rear Speaker Output (+)
2	D-BU	-	Right Rear Speaker Output (-)

Tweeter - Left

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 610070 2-Way F 090 (2.3 mm) Series (WH)
Pin	Wire Color	Circuit No.	Function
1	GY	-	Left Front Speaker Output (-)
2	BN	-	Left Front Speaker Output (+)

Tweeter - Right

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 610070 2-Way F 090 (2.3 mm) Series (WH)
Pin	Wire Color	Circuit No.	Function
1	D-GN	-	Right Front Speaker Output (-)
2	L-GN	-	Right Front Speaker Output (+)
