Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

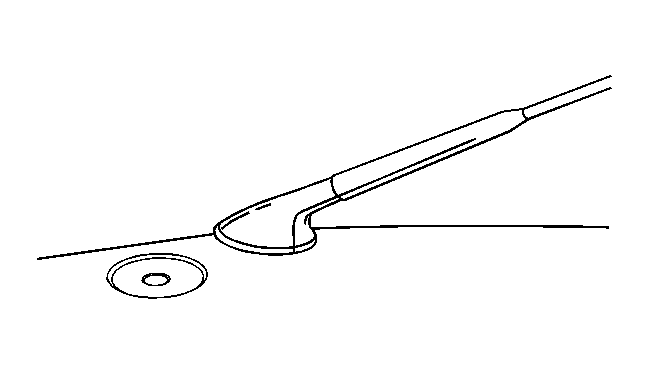

    Fig 1: View of Roof Antenna
    GM1248471Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the roof antenna with the screw.

    Tighten:  Tighten the roof antenna retaining screws to 3 N.m (27 lb in).

  2. Install the interior courtesy lamp. Refer to Interior Courtesy Lamp Replacement .
  3. Connect the negative battery cable.
