Removal Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

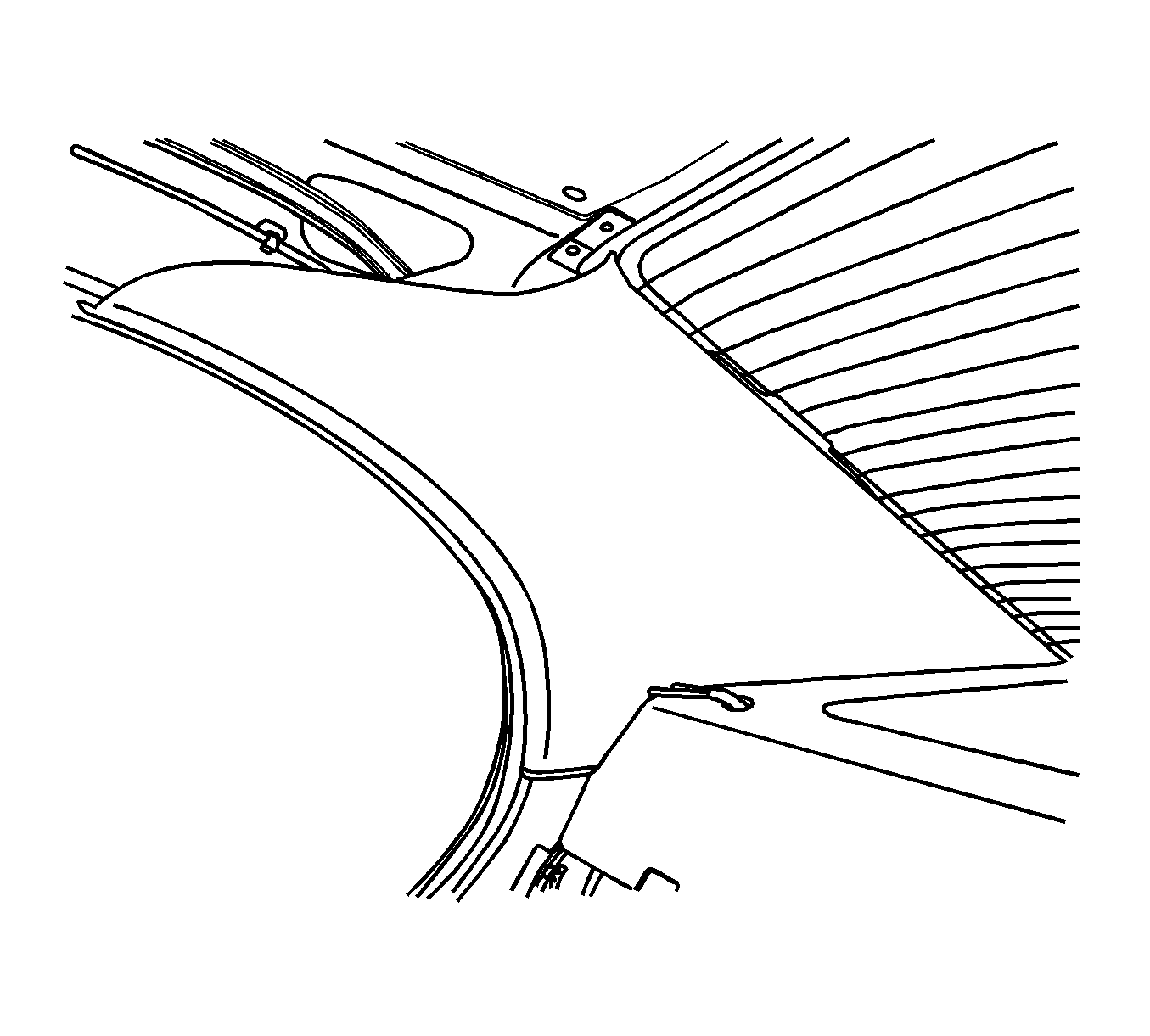

Fig 1: Rear Quarter Upper Trim Panel

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Battery Disconnect Caution .

Disconnect the negative battery cable.
Remove the rear quarter upper trim panel. Refer to Rear Quarter Upper Trim Panel Replacement (Notchback) or Rear Quarter Upper Trim Panel Replacement (Hatchback) .

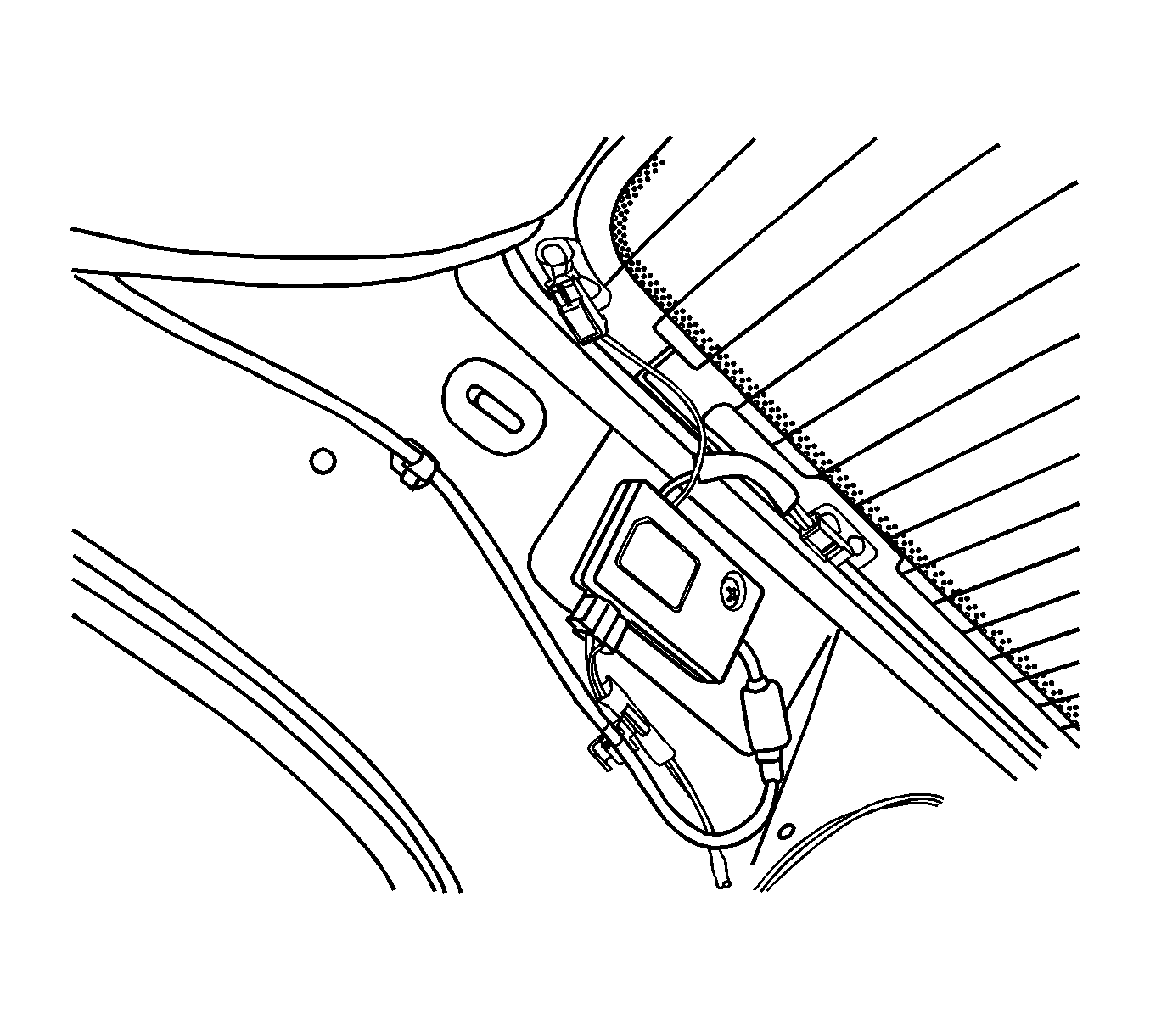

Fig 2: Glass Antenna Module

Courtesy of GENERAL MOTORS CORP.

Disconnect the negative battery cable.
Remove the screws and the glass antenna module.
