Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

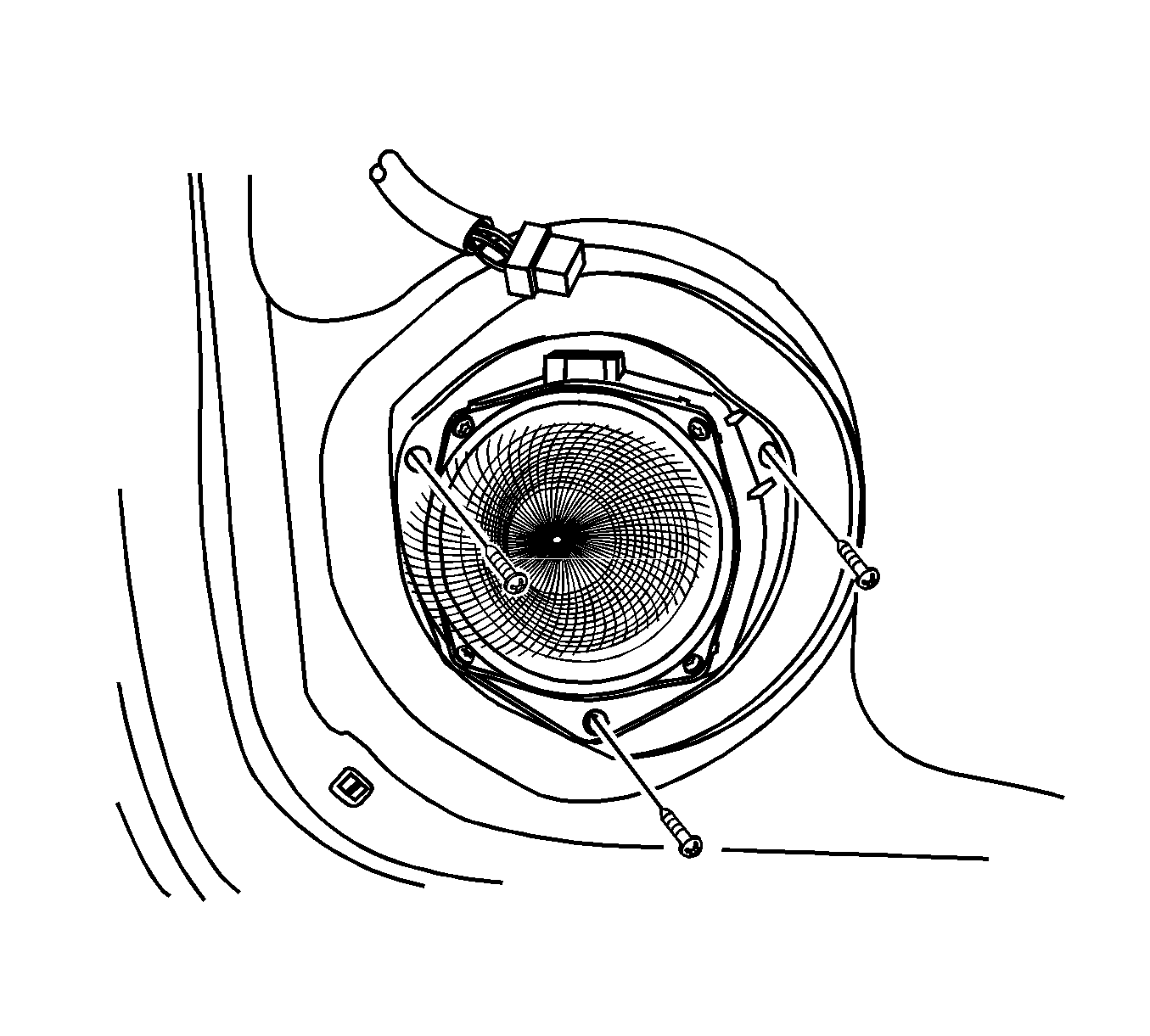

    Fig 1: View of Front Speaker and Screws
    GM1248467Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector.
    2. NOTE: Refer to Fastener Notice .
  2. Install the front speaker with the screws.

    Tighten:  Tighten the front speaker screws to 3.5 N.m (31 lb in).

  3. Install the front door trim panel. Refer to Front Side Door Trim Panel Replacement (Notchback) or Front Side Door Trim Panel Replacement (Hatchback) .
  4. Connect the negative battery cable.
