Radio/Navigation System Schematics (Notchback)
WARNING:
This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

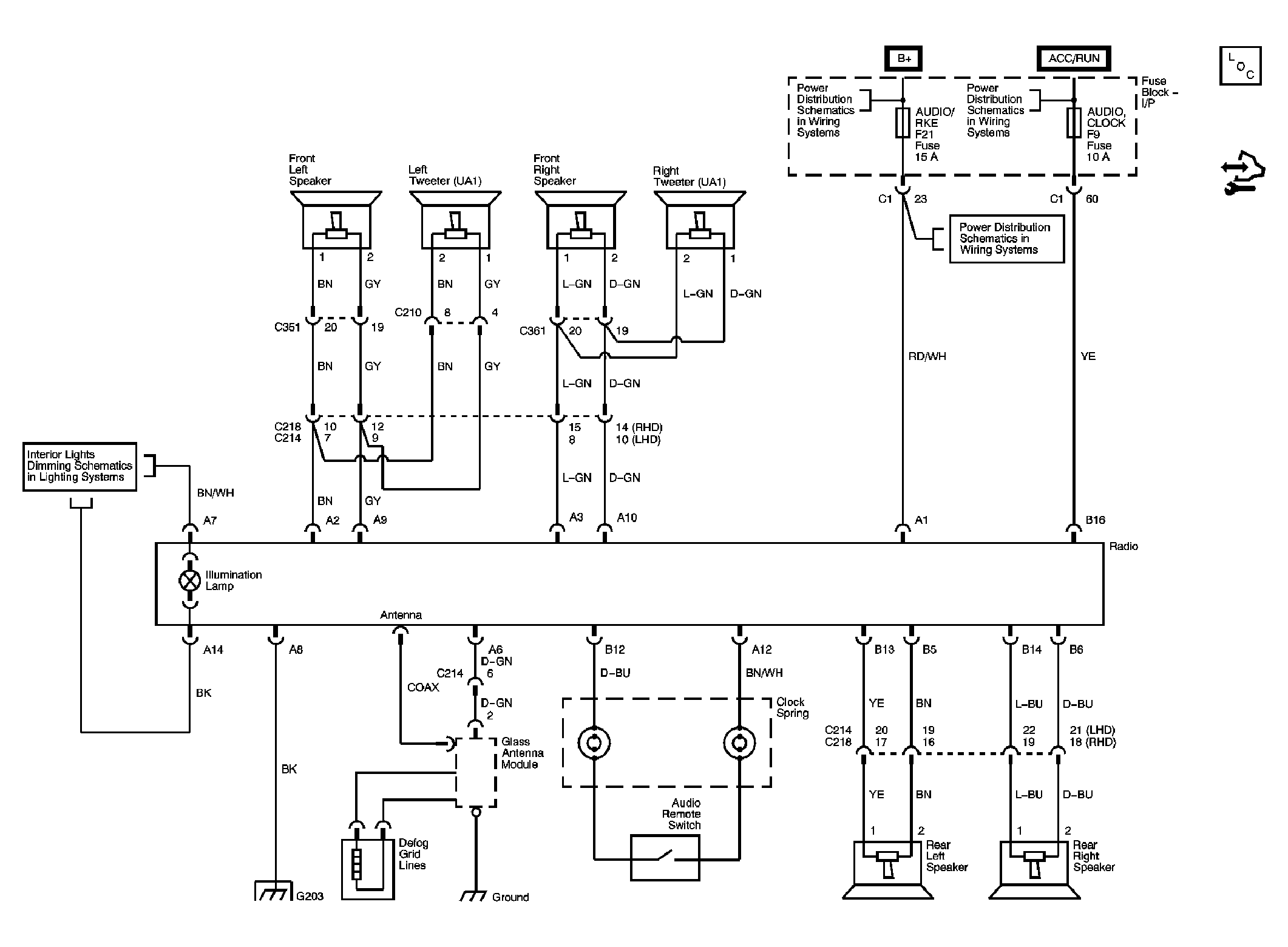

Fig 1: Radio/Navigation System Schematic
Courtesy of GENERAL MOTORS CORP.
