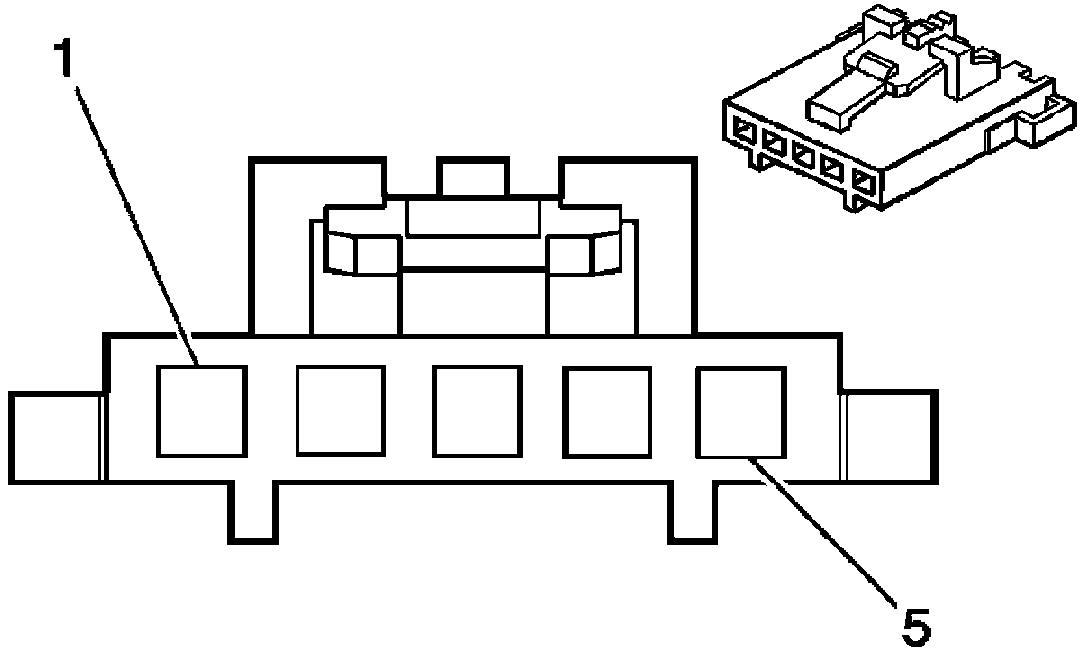

Alarm Module, (Vehicle Antitheft)

Theft Deterrent Module (TDM)






Connector Part Information
OEM: 50-57-9705
Service: 88988353
Description: 5-Way F SL Series, Unsealed (BK)

Terminal Part Information
Terminal/Tray: 16-02-1110/20
Core/Insulation Crimp: H/H
Release Tool/Test Probe: J-38125-213/J-35616-64B (L-BU)

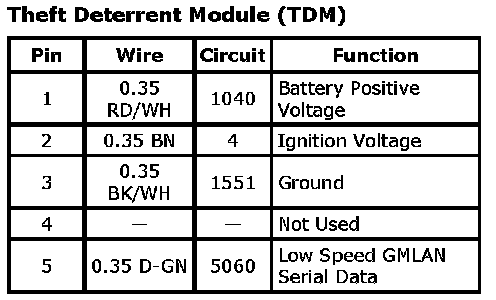

Theft Deterrent Module (TDM):
