Home >> Suzuki >> 2007 >> XL-7 2WD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Engine Block Assembly
April 5, 2026: LEMON Manuals is launched! Read the announcement.

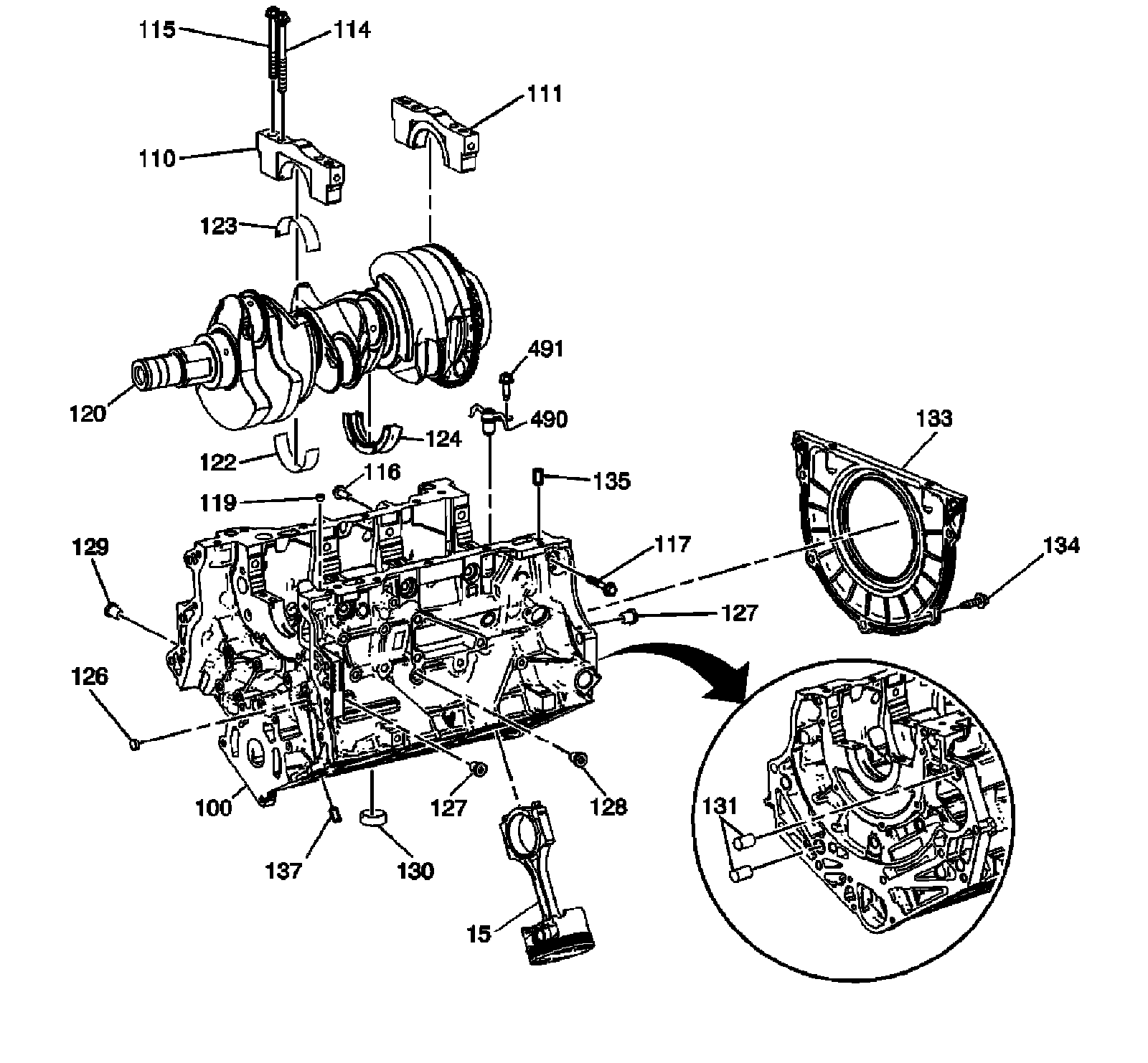

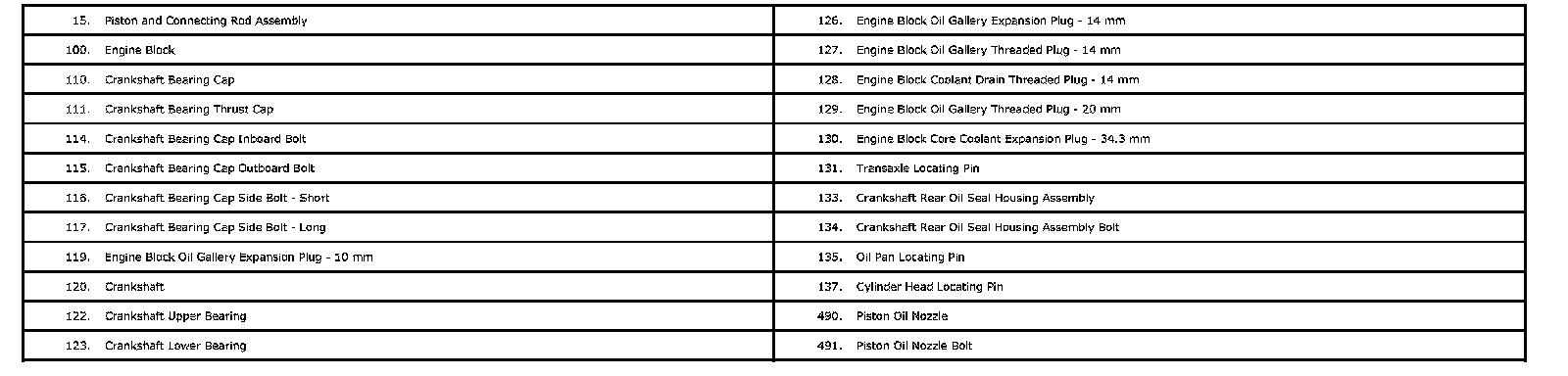

Engine Block Assembly
