Auxiliary Heater and Blower Control Module Scan Tool Information

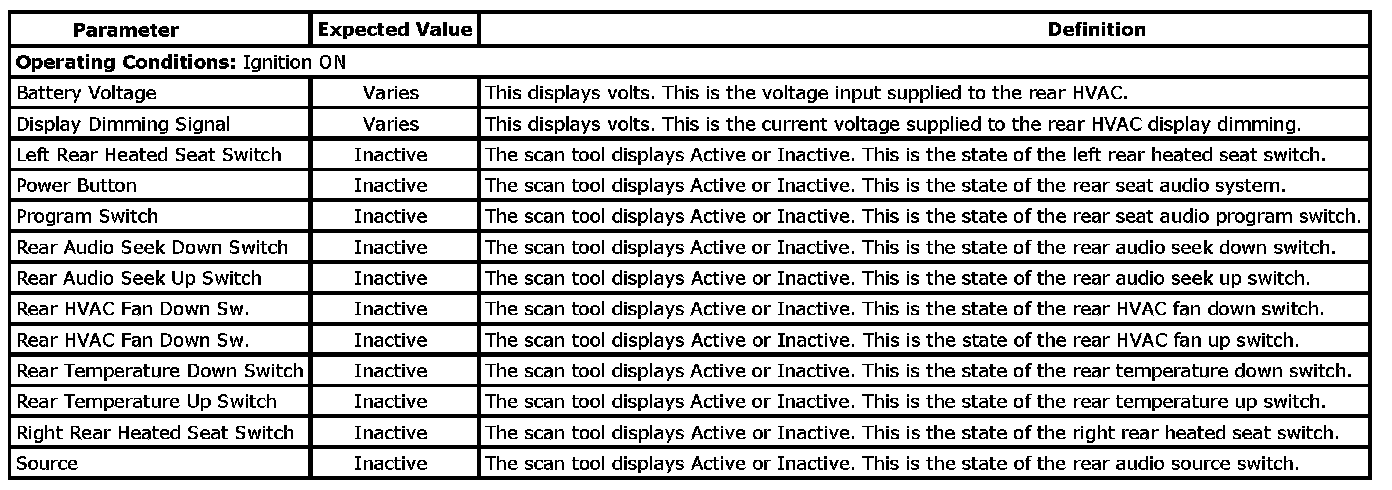

Auxiliary Heater And Blower Control Module Scan Tool Information:



Rear HVAC/RSA Scan Tool Output Controls:
