Heating, Ventilation and Air Conditioning Control Module Scan Tool Information

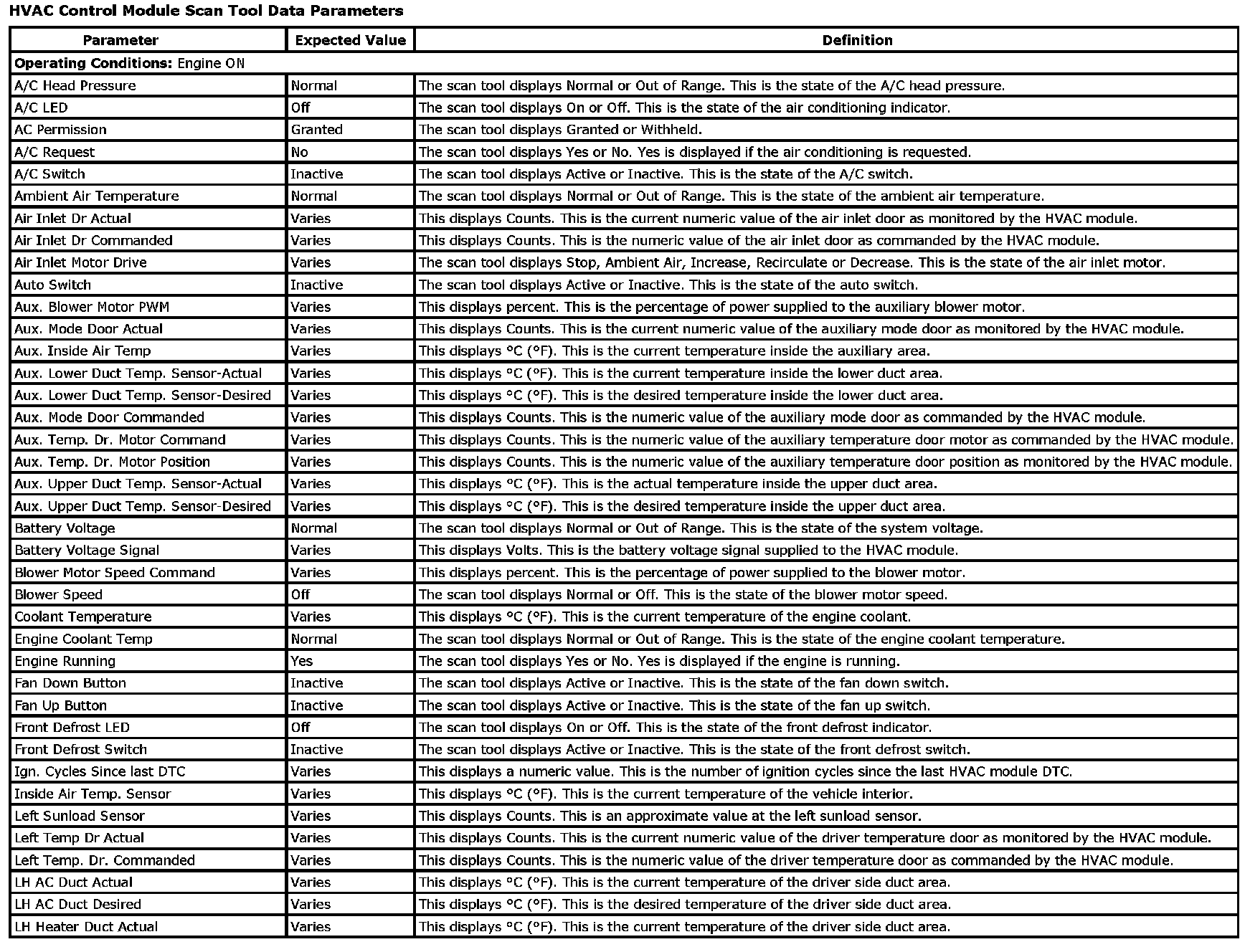

HVAC Control Module Scan Tool Data Parameters (Part 1):

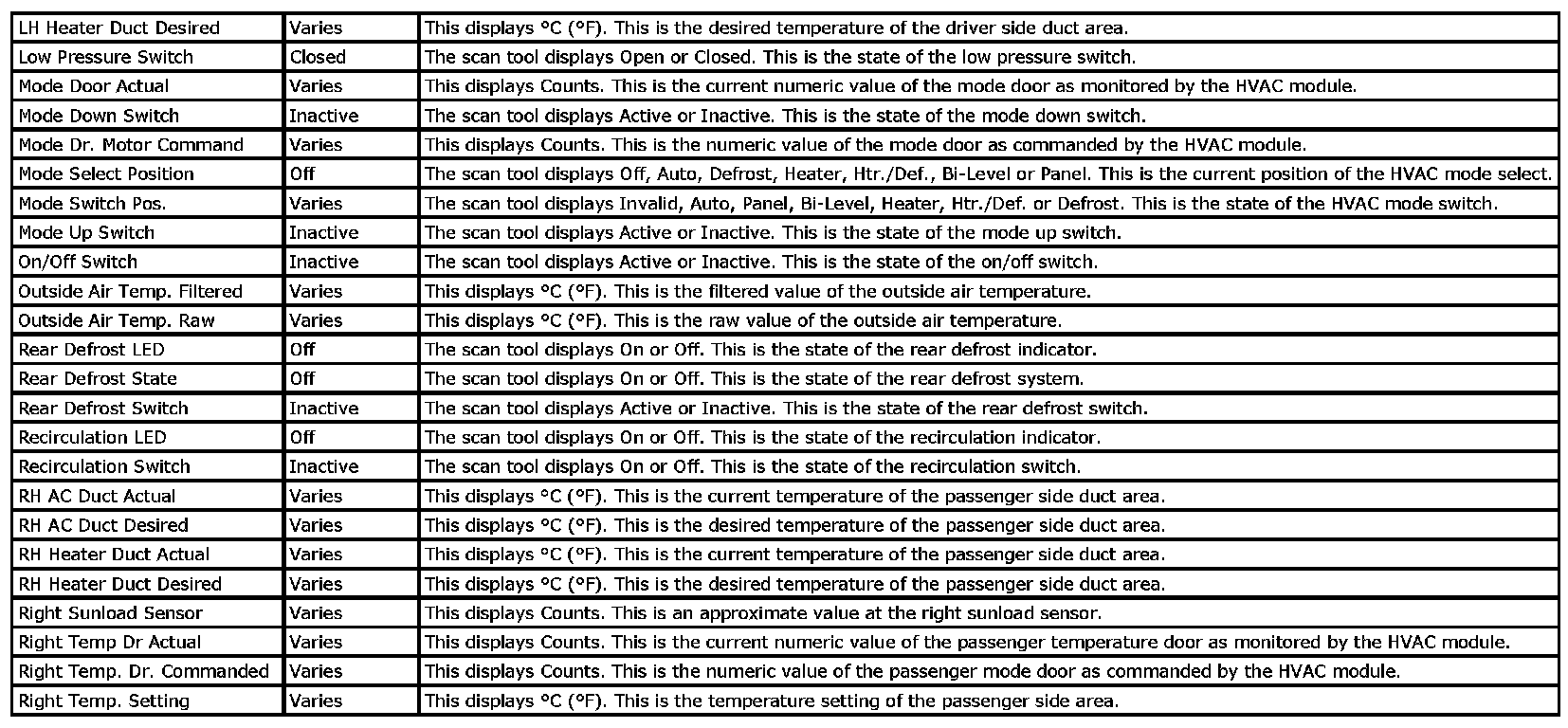

HVAC Control Module Scan Tool Data Parameters (Part 2):

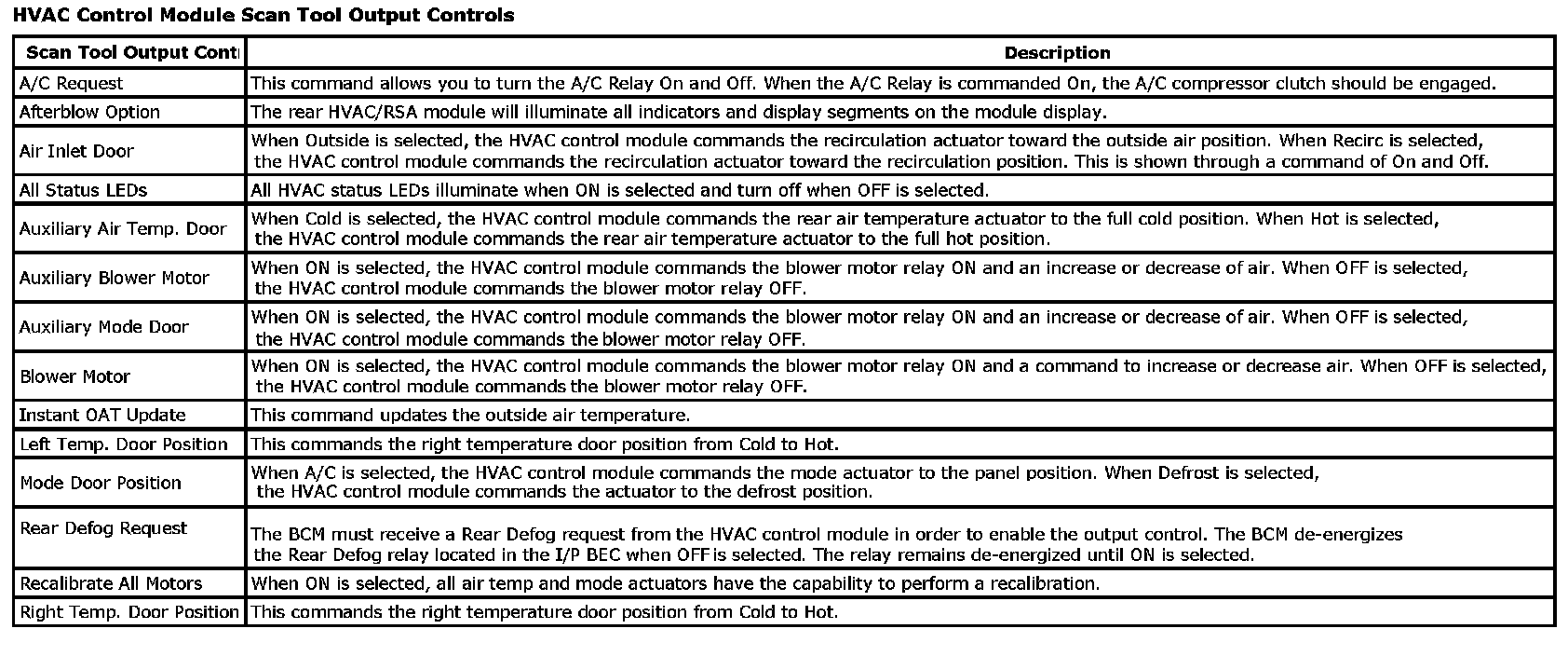

HVAC Control Module Scan Tool Output Controls:
