Connector Views

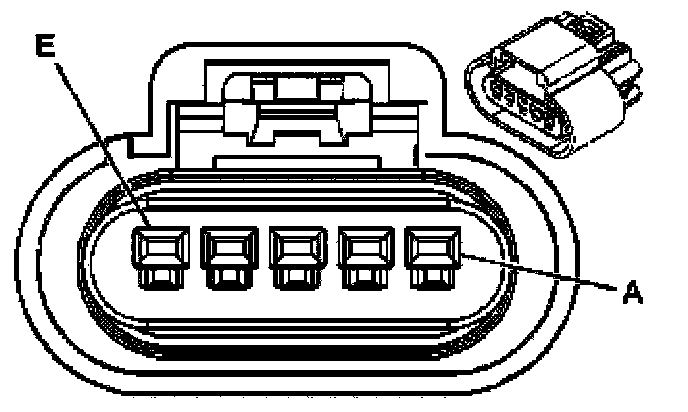

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor:

Connector Part Information
OEM: 13520906
Service: 19151493
Description: 5-Way F GT 150 Sealed (BK)

Terminal Part Information
Terminal/Tray: 12191819/8
Core/Insulation Crimp: Pins A, B, D, E-E/A
Core/Insulation Crimp: Pins C-2/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)
