Air Flow Meter/Sensor: Service and Repair

Mass Airflow Sensor/Intake Air Temperature Sensor Replacement




Removal Procedure

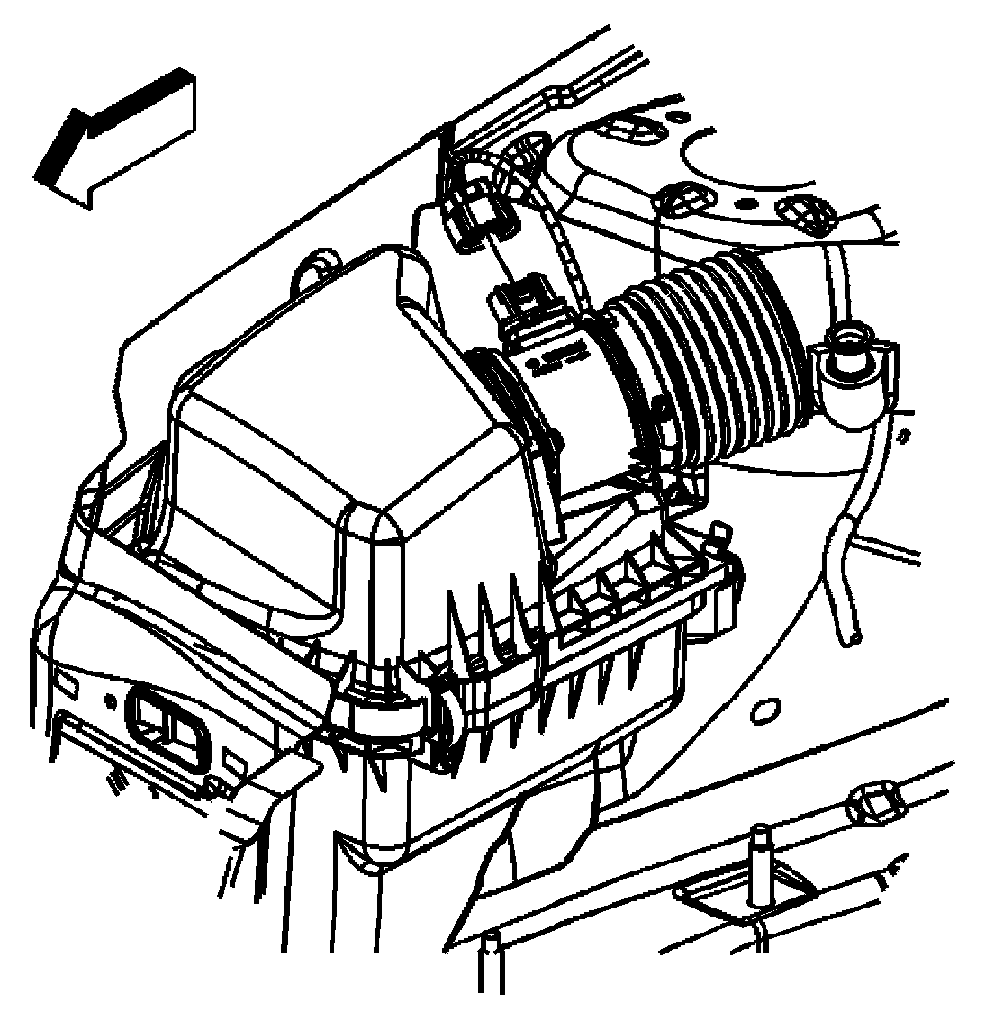

1. Remove the air cleaner outlet duct.




2. Disconnect the engine wiring harness electrical connector from the mass air flow (MAF)/intake air temperature (IAT) sensor.

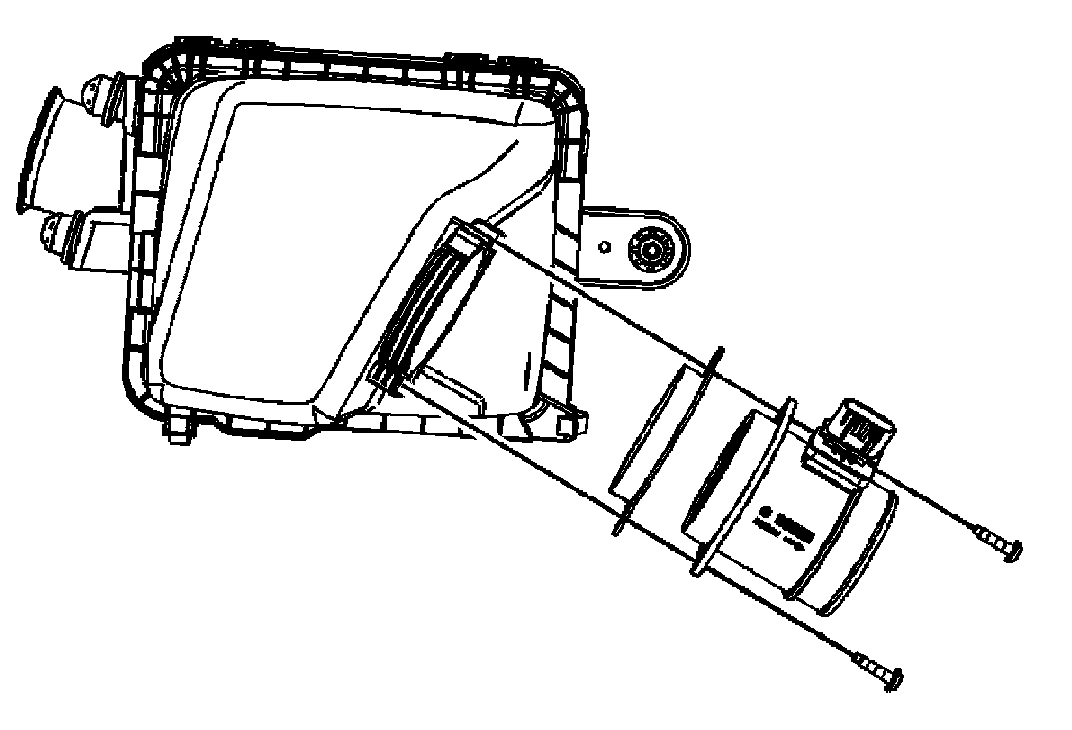

3. Remove the MAF/IAT sensor screws.
4. Remove the MAF/IAT sensor from the air cleaner assembly.
5. Remove the MAF/IAT sensor seal.




Installation Procedure
1. Install the MAF/IAT sensor seal to the MAF/IAT sensor.
2. Install the MAF/IAT sensor to the air cleaner assembly.

CAUTION: Refer to Fastener Notice.

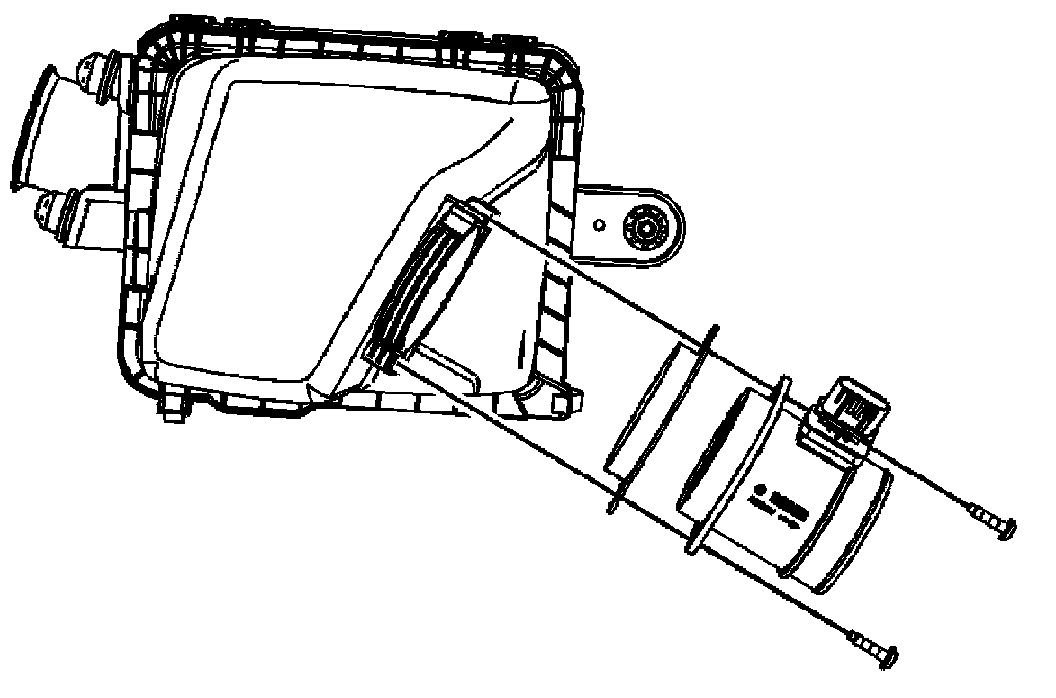

3. Install the MAF/IAT sensor screws.

Tightening torque
Tighten the screws to 4 N.m (35 lb.in).

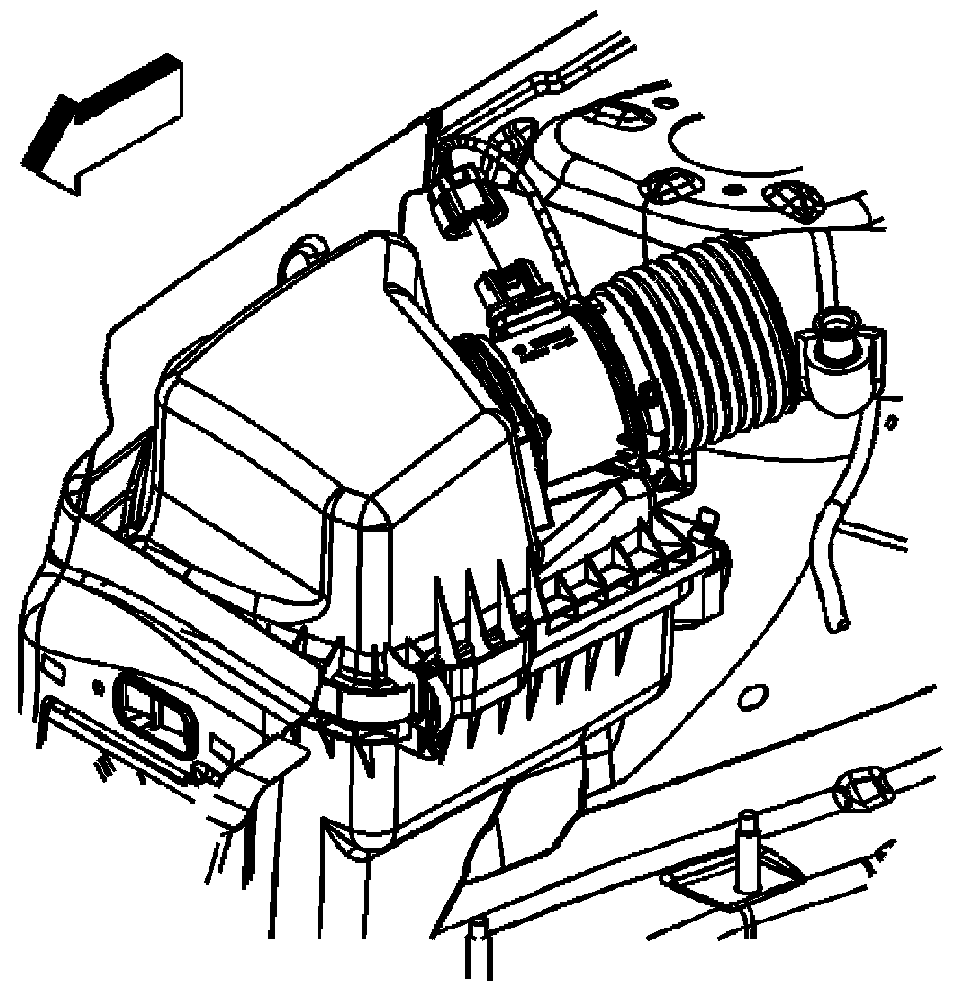

4. Connect the engine wiring harness electrical connector to the MAF/IAT sensor.
5. Install the air cleaner outlet duct.
