Coolant Temperature Sensor/Switch (For Computer): Diagrams

Engine Coolant Temperature (ECT) Sensor

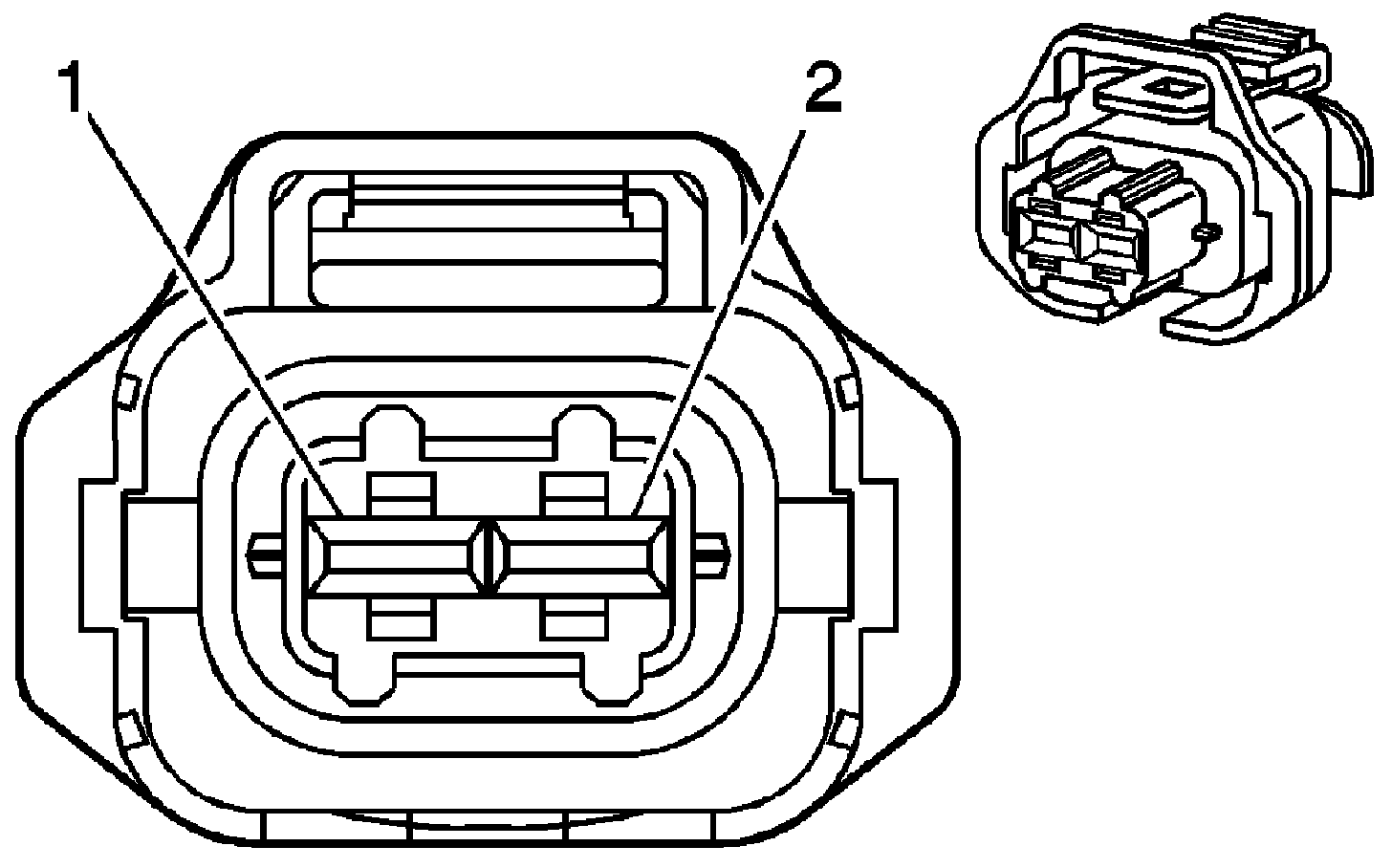

Engine Coolant Temperature (ECT) Sensor:

Connector Part Information
OEM: 1928403874
Service: 88988963
Description: 2-Way F Kompakt 2.8 Series Sealed (BK)

Terminal Part Information
Terminal/Tray: 1928498054/8
Core/Insulation Crimp: E/1
Release Tool/Test Probe: J-38125-561/J-35616-4A (PU)
