Wiper Motor Module Grommet Replacement
Wiper Motor Module Grommet ReplacementRemoval Procedure
1. Remove the front wiper motor. Refer to [Wiper Motor Module Replacement].

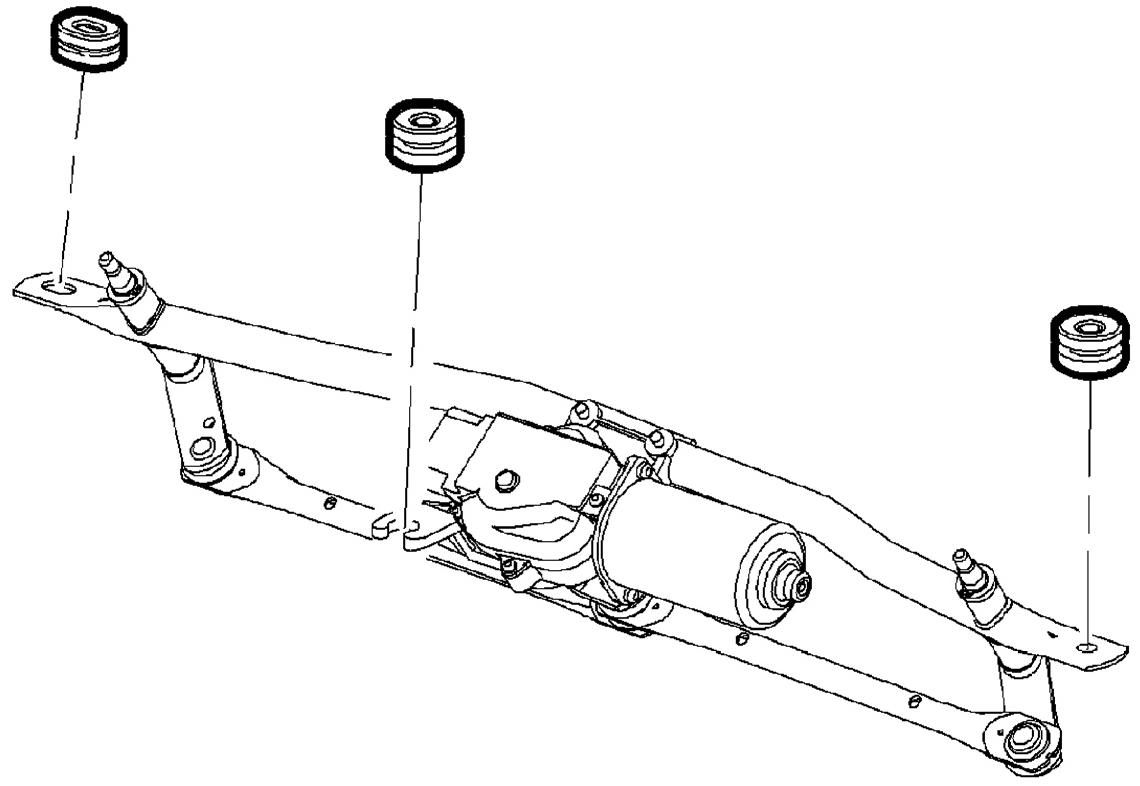

2. Remove the grommets and the bushings from the module.
Installation Procedure
NOTE: The metal bushing inserts need to be installed with the flat side underneath the module bolts.

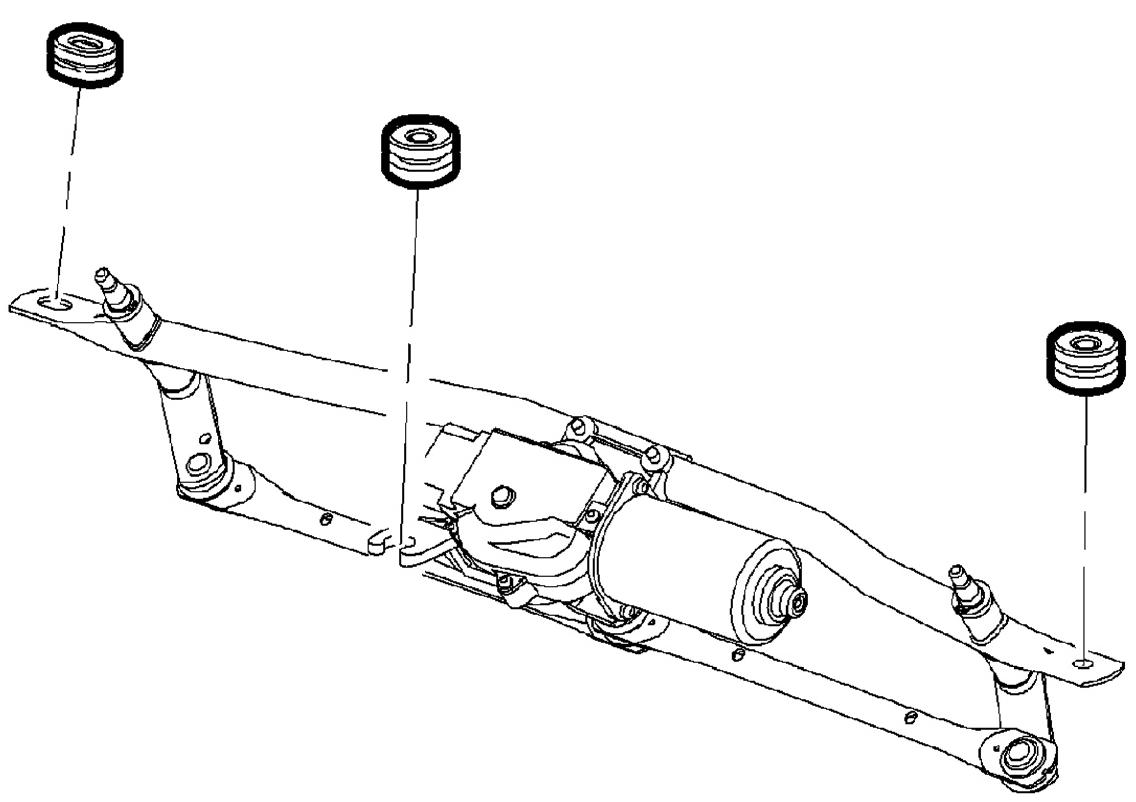

1. Install the grommets and the bushings to the module.
2. Install the front wiper motor. Refer to [Wiper Motor Module Replacement].
