Fuse: Application and ID

Usage and Capacity of Fuses in Fuse Box

Engine Room Relay and Fuse Block

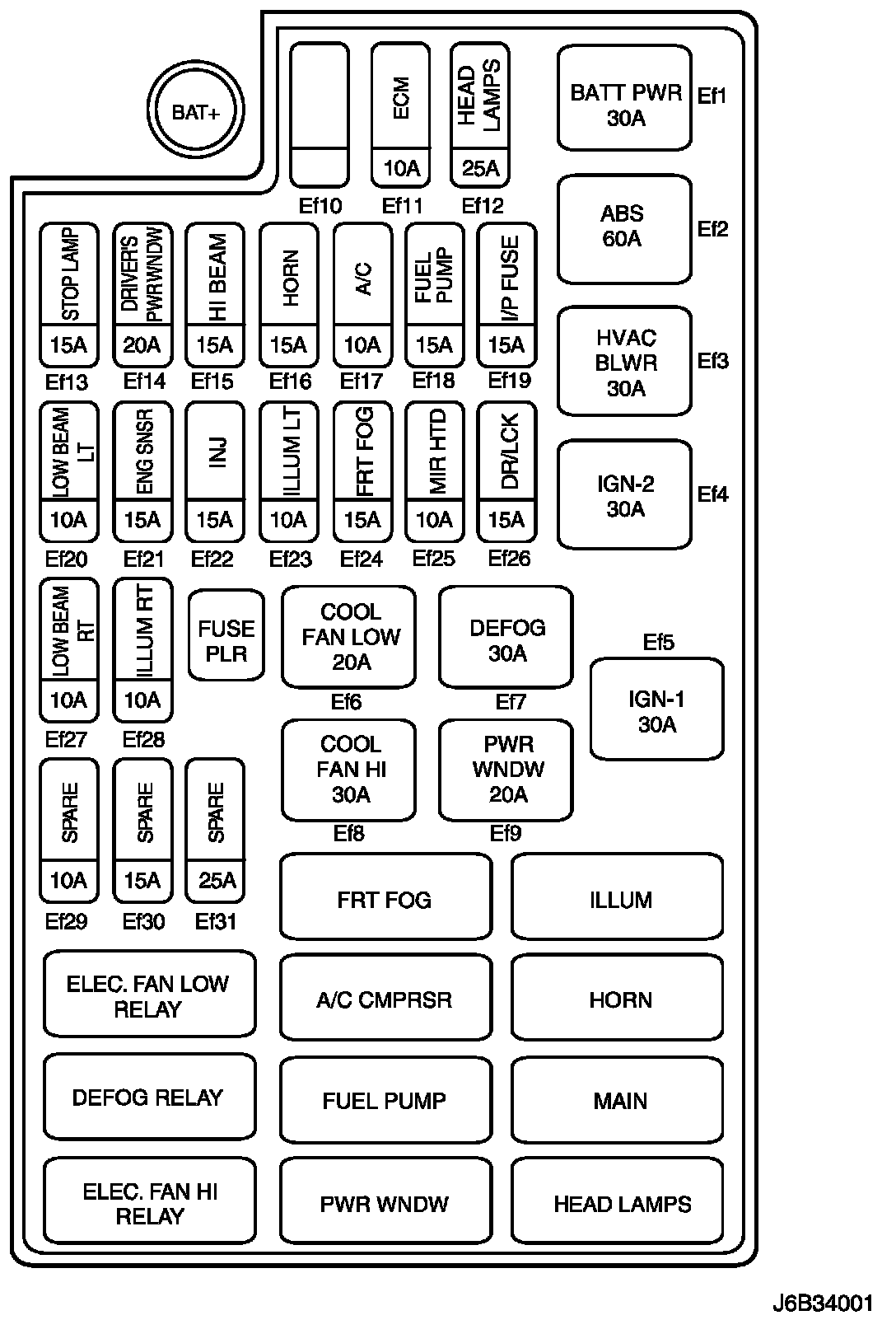

Engine Room Relay and Fuse Block (Position of Relay and Fuse):

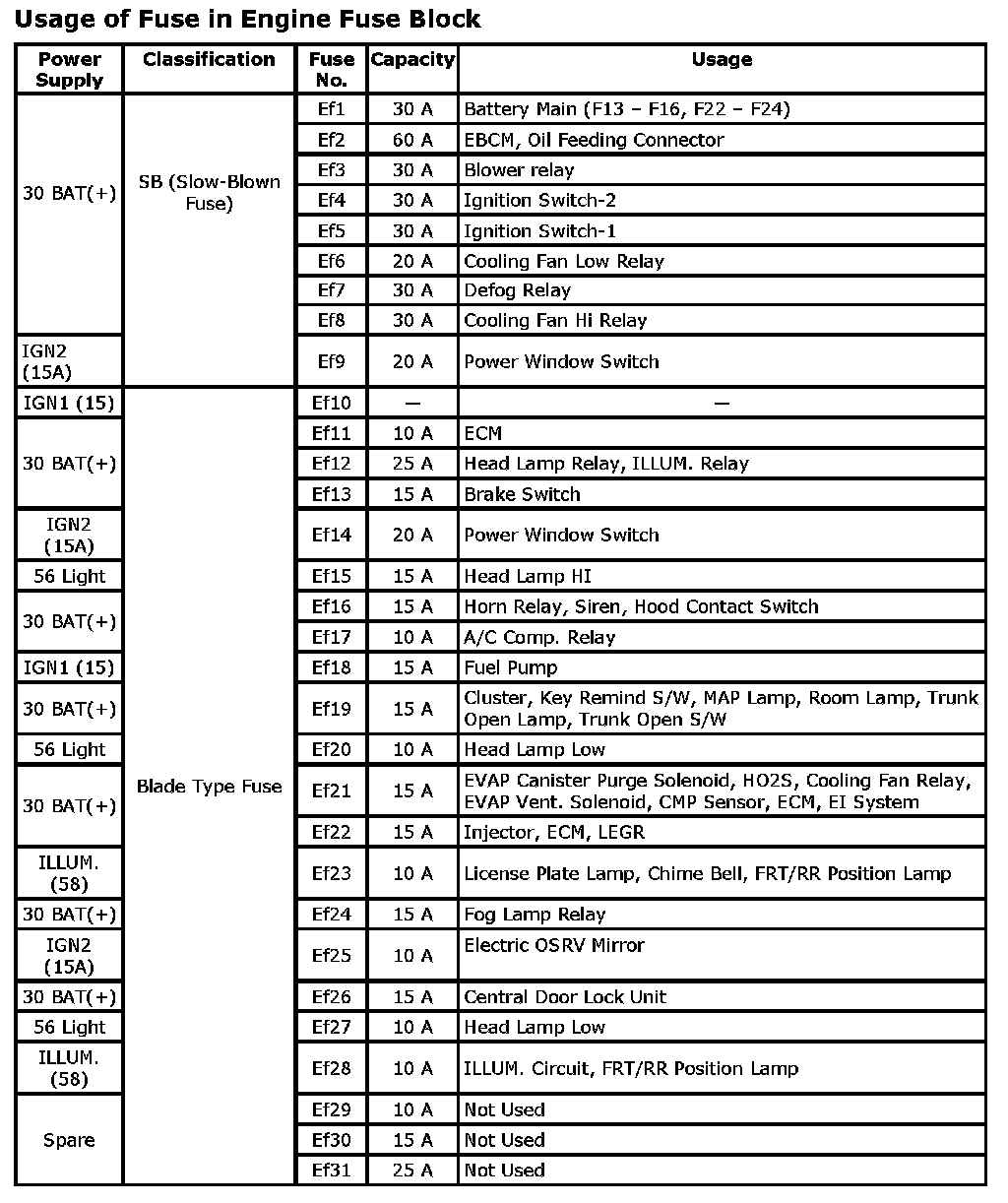

Usage Of Fuse In Engine Fuse Block:





I.P Fuse Block

I.P Fuse Block (Position Of Fuse And Relay):




Usage Of Fuses In I.P Fuse Block:
