Keyless Start Control Module Power and Ground Circuit Check: Wiring Diagram

WARNING: This page is about a different car, the 2007 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

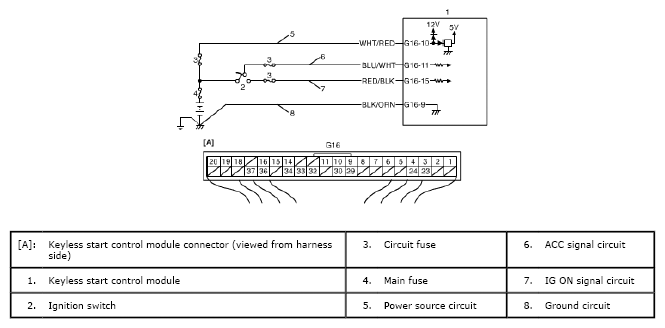

Fig 1: Keyless Start Control Module Power And Ground Circuit Diagram
G04849208Courtesy of SUZUKI OF AMERICA CORP.
