Speed Sensitive Power Steering Control Module Removal and Installation: Installation

  1. Connect the electrical connector to the SSPS control module.
  2. Slide the SSPS control module onto the SSPS control module bracket.
  3. Install the glove box. Refer to GLOVE BOX REMOVAL AND INSTALLATION .
  4. Connect the negative battery cable.

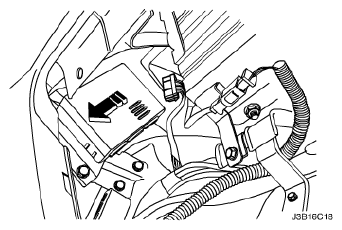

    Fig 1: Connecting Electrical Connector To SSPS Control Module
    G04717706Courtesy of SUZUKI OF AMERICA CORP.
