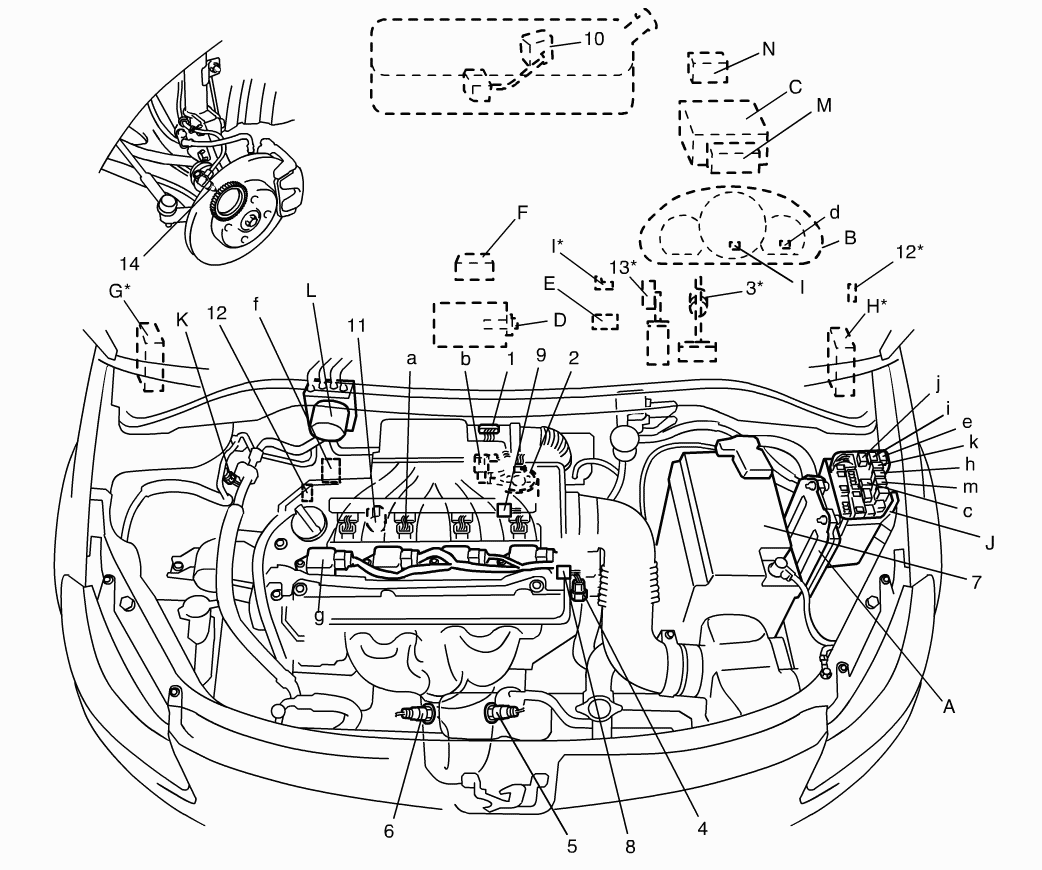

Electronic Control System Components Location
NOTE:
The figure shows left-hand steering vehicle. For right-hand steering vehicle, parts with (*) are installed at the opposite side.
ELECTRONIC CONTROL SYSTEM COMPONENTS LOCATION
| Information sensors | Control devices | Others |
|---|---|---|
| 1. MAF and IAT sensor | a: Fuel injector | A: ECM |
| 2. Electric throttle body assembly (built-in TP sensor and throttle actuator) | b: EVAP canister purge valve | B: Combination meter |
| 3. Brake light switch | c: Fuel pump relay | C: EVAP canister |
| 4. ECT sensor | d: MIL | D: A/C evaporator temperature sensor |
| 5. A/F sensor | e: Radiator cooling fan relay No. 1 | E: DLC |
| 6. HO2S | f: IMT valve actuator | F: 4WD control module |
| 7. Battery | g: Ignition coil assembly (with ignitor) | G: TCM |
| 8. CMP sensor | h: Main relay | H: BCM |
| 9. CKP sensor | i: Radiator cooling fan relay No. 2 | I: Immobilizer coil antenna |
| 10. Fuel level sensor | j: Radiator cooling fan relay No. 3 | J: Fuse box No. 2 |
| 11. Knock sensor | k: Starting motor control relay | K: A/C refrigerant pressure sensor |
| 12. P/S pump pressure switch | l: Immobilizer indicator light | L: ABS / ESP® control module |
| 13. APP sensor | m: Throttle actuator control relay | M: EVAP leak check module assembly (built-in pressure sensor, vent valve and detection pump) |
| 14. Front wheel speed sensor (VSS) | N: EVAP canister air suction filter |
