Engine Controls Connector End Views (Notchback)

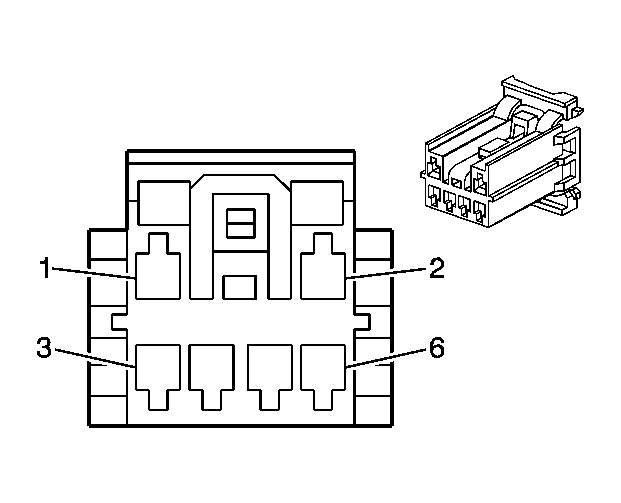

Accelerator Pedal Position (APP) Sensor (MT34)

GM1467042Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • MG 651044
  • 6-Way F
Pin Wire Color Circuit No. Function
1 D-BU - APP Sensor 2 Signal
2 BN - Low Reference
3 GY - 5-Volt Reference 2
4 GY - 5-Volt Reference 1
5 OG/BK - Low Reference
6 L-BU - APP Sensor 1 Signal
Camshaft Position (CMP) Sensor

GM1467004Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 85205-1
  • 3-Way F JR Power Timer 3P Housing Assembly (BK)
Pin Wire Color Circuit No. Function
1 PK (MR140) - Ignition 1 Voltage
OG (MT34)
2 BK/WH - Ground
3 L-BU/BK - Camshaft Position (CMP) Sensor Signal
Clutch Pedal Position (CPP) Switch (MT34)

GM1468381Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KUM PB 625-04027
  • 4-Way F NMWP 02F-B Assembly (BK)
Pin Wire Color Circuit No. Function
1 YE - Ignition 1 Voltage
2 BK - Ground
3 PU - Crank Signal
4 L-BU - Crank Signal
Crankshaft Position Sensor (CKP) Sensor

GM1467004Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 85205-1
  • 3-Way F JR Power Timer 3P Housing Assembly (BK)
Pin Wire Color Circuit No. Function
1 D-BU/WH - Crankshaft Position (CKP) Sensor Signal
2 YE/BK - Low Reference
3 BK (MR140) - Ground
BK/WH (MT34)
Electronic Throttle Control (MT34)

GM1466987Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 15326835
  • 8-Way F Metri-Pack 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
1 PK - 5-Volt Reference
2 PU - TPS 2 Signal
3 L-BU - TPS 1 Signal
4 D-BU - Low Reference
5 BN - ETC (-)
6-7 - - Not Used
8 BN - ETC (+)
Engine Coolant Temperature (ECT) Sensor

GM62426Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12040753
  • 2-Way F Metri-Pack 150 Series Sealed, Pull To Seat (BK)
Pin Wire Color Circuit No. Function
A YE - Engine Coolant Temperature (ECT) Sensor Signal
B BN - Low Reference
Evaporative Emission (EVAP) Canister Purge Solenoid Valve

GM684795Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12052643
  • 2-Way F Metri-Pack 150 Series Sealed (RD)
Pin Wire Color Circuit No. Function
A BN (MR140) - EVAP Canister Purge Valve Solenoid Control
WH (MT34)
B PK (MR140) - Ignition 1 Voltage
OG (MT34)
Evaporative Emission (EVAP) Canister Vent Solenoid Valve (MT34)

GM684795Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12052643
  • 2-Way F Metri-Pack 150 Series Sealed (RD)
Pin Wire Color Circuit No. Function
A YE - EVAP Canister Vent Valve Solenoid Control
B PK - Ignition 1 Voltage
Exhaust Gas Recirculation (EGR) Valve

GM1468386Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12110790
  • 5-Way F Metri-Pack 150 Series Sealed (GY)
Pin Wire Color Circuit No. Function
A WH - Exhaust Gas Recirculation Valve Control
B BN/WH - Low Reference
C GY - Exhaust Gas Recirculation (EGR) Valve Position Sensor Signal
D PU - 5-Volt Reference
E PK (MR140) - Ignition 1 Voltage
OG (MT34)
Fuel Injector 1

GM1466998Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 368468-1
  • 2-Way F Injector Plug Assembly (BK)
Pin Wire Color Circuit No. Function
1 PU (MR140) - Ignition 1 Voltage
OG/BK (MT34)
2 L-BU/WH (MR140) - Fuel Injector 1 Control
BU/WH (MT34)
Fuel Injector 2

GM1466998Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 368468-1
  • 2-Way F Injector Plug Assembly (BK)
Pin Wire Color Circuit No. Function
1 PU (MR140) - Ignition 1 Voltage
OG/BK (MT34)
2 BN (MR140) - Fuel Injector 2 Control
PK/BK (MT34)
Fuel Injector 3

GM1466998Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 368468-1
  • 2-Way F Injector Plug Assembly (BK)
Pin Wire Color Circuit No. Function
1 PU (MR140) - Ignition 1 Voltage
OG/BK (MT34)
2 PU/D-BU (MR140) - Fuel Injector 3 Control
L-GN/BK (MT34)
Fuel Injector 4

GM1466998Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 368468-1
  • 2-Way F Injector Plug Assembly (BK)
Pin Wire Color Circuit No. Function
1 PU (MR140) - Ignition 1 Voltage
OG/BK (MT34)
2 L-GN/D-BU (MR140) - Fuel Injector 4 Control
BN (MT34)
Fuel Pump/Sender

GM1468528Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 36159-1
  • 6-Way F Fuel Pump 6 POS Connector Assembly (BN)
Pin Wire Color Circuit No. Function
1 BU - Fuel Level Sensor Signal
2 BK - Ground
3 BN - Fuel Pump Supply Voltage
4 PK - Ignition Voltage
5 YE - Low Fuel Indicator Control
6 L-BU - Low Reference
Fuel Tank Pressure (FTP) Sensor (MT34)

GM1265363Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 620395
  • 3-Way M Series Sealed (WH)
Pin Wire Color Circuit No. Function
1 OG/BK - Low Reference
2 BN/BK - Fuel Tank Pressure Sensor Signal
3 RD/WH - 5-Volt Reference
Heated Oxygen Sensor (HO2S) 1

GM684854Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12162144
  • 4-Way F Metri-Pack 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A GN/WH - Heated Oxygen Sensor (HO2S) 1 Low Reference
B BN - Heated Oxygen Sensor (HO2S) 1 Signal
C BK - Ground
D PK - Ignition 1 Voltage
Heated Oxygen Sensor (HO2S) 1 (EURO IV)

GM684854Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12162144
  • 4-Way F Metri-Pack 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A BN - Heated Oxygen Sensor (HO2S) 1 Signal
B BK - Ground
C GN/WH - Heated Oxygen Sensor (HO2S) 1 Low Reference
D PK - Ignition 1 Voltage
Heated Oxygen Sensor (HO2S) 1 (MT34)

GM1468381Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KUM PB 625-04027
  • 4-Way F NMWP 02F-B Assembly (BK)
Pin Wire Color Circuit No. Function
1 BN - Heated Oxygen Sensor (HO2S) 1 Signal
2 GY - Heated Oxygen Sensor (HO2S) 1 Heater Control
3 D-GN/WH - Heated Oxygen Sensor (HO2S) 1 Low Reference
4 OG - Ignition 1 Voltage
Heated Oxygen Sensor (HO2S) 2

GM684854Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12162144
  • 4-Way F Metri-Pack 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A PU - Heated Oxygen Sensor (HO2S) 2 Low Reference
B BN - Heated Oxygen Sensor (HO2S) 2 Signal
C BN - Heated Oxygen Sensor (HO2S) 2 Heater Control
D OG - Ignition 1 Voltage
Heated Oxygen Sensor (HO2S) 2 (EURO IV)

GM684854Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12162144
  • 4-Way F Metri-Pack 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A BN - Heated Oxygen Sensor (HO2S) 2 Signal
B BN - Heated Oxygen Sensor (HO2S) 2 Heater Control
C PU - Heated Oxygen Sensor (HO2S) 2 Low Reference
D OG - Ignition 1 Voltage
Heated Oxygen Sensor (HO2S) 2 (MT34)

GM1468381Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KUM PB 625-04027
  • 4-Way F NMWP 02F-B Assembly (BK)
Pin Wire Color Circuit No. Function
1 BN - Heated Oxygen Sensor (HO2S) 1 Signal
2 BN - Heated Oxygen Sensor (HO2S) 1 Heater Control
3 PU - Heated Oxygen Sensor (HO2S) 1 Low Reference
4 OG - Ignition 1 Voltage
Idle Air Control (IAC) Valve (MR140)

GM38608Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12040754
  • 4-Way Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A PU/BU - Idle Air Control (IAC) B Low Control
B D-BU - Idle Air Control (IAC) B High Control
C L-GN/BK - Idle Air Control (IAC) A Low Control
D GN - Idle Air Control (IAC) A High Control
Ignition Coil (IC) Module

GM516611Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12059595
  • 3-Way F Metri-Pack 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A OG (MR140) - Ignition Coil (IC) Timing Control 2 and 3
WH (MT34)
B PK (MR140) - Ignition 1 Voltage
OG/BK (MT34)
C OG - Ignition Coil (IC) Timing Control 1 and 4
Intake Air Temperature (IAT) Sensor

GM1467003Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 85202-1
  • 2-Way JR Power Timer 2P Housing Assembly (BK)
Pin Wire Color Circuit No. Function
1 BN - Intake Air Temperature (IAT) Sensor Signal
2 BN - Low Reference
Intake Manifold Tuning Valve

GM1466982Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 174352-2
  • 2-Way F Econoseal J Mark II + Connector Plug Housing (BK)
Pin Wire Color Circuit No. Function
1 PK (MR140) - Ignition 1 Voltage
OG (MT34)
2 YE - Intake Manifold Tuning Valve Solenoid Control
Intake Manifold Tuning Valve Position Sensor (MT34)

GM1466993Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 368215-1
  • 3-Way JPT 3P Assembly for Knock Sensor (GY)
Pin Wire Color Circuit No. Function
1 PU - 5-Volt Reference
2 D-BU - Intake Manifold Tuning Valve Position Sensor Signal
3 BN/WH - Low Reference
Knock Sensor (KS)

GM1467003Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 85202-1
  • 2-Way JR Power Timer 2P Housing Assembly (BK)
Pin Wire Color Circuit No. Function
1 D-BU - Knock Sensor (KS) Signal
2 L-BU - Low Reference
Manifold Absolute Pressure (MAP) Sensor

GM516611Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12059595
  • 3-Way F Metri-Pack 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A BN/WH - Low Reference
B L-GN - Manifold Absolute Pressure Sensor Signal
C PU - 5-Volt Reference
Octane Selector Switch (MR140)

GM1467062Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 620395
  • 3-Way M Series Sealed (WH)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 BK - Ground
3 D-GN - Octane Selection Signal
Rough Road Sensor

GM73223Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12162185
  • 3-Way F Metri-Pack 150.2 Series Sealed, Pull To Seat (BK)
Pin Wire Color Circuit No. Function
A OG/BK - 5-Volt Reference
B D-GN - Rough Road Sensor Signal
C L-BU - Low Reference
Throttle Position (TP) Sensor (MR140)

GM258299Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12078090
  • 3-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A PK - 5-Volt Reference
B BN - Low Reference
C L-BU - Throttle Position (TP) Sensor Signal
